| Part Number | 6801-05-05-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

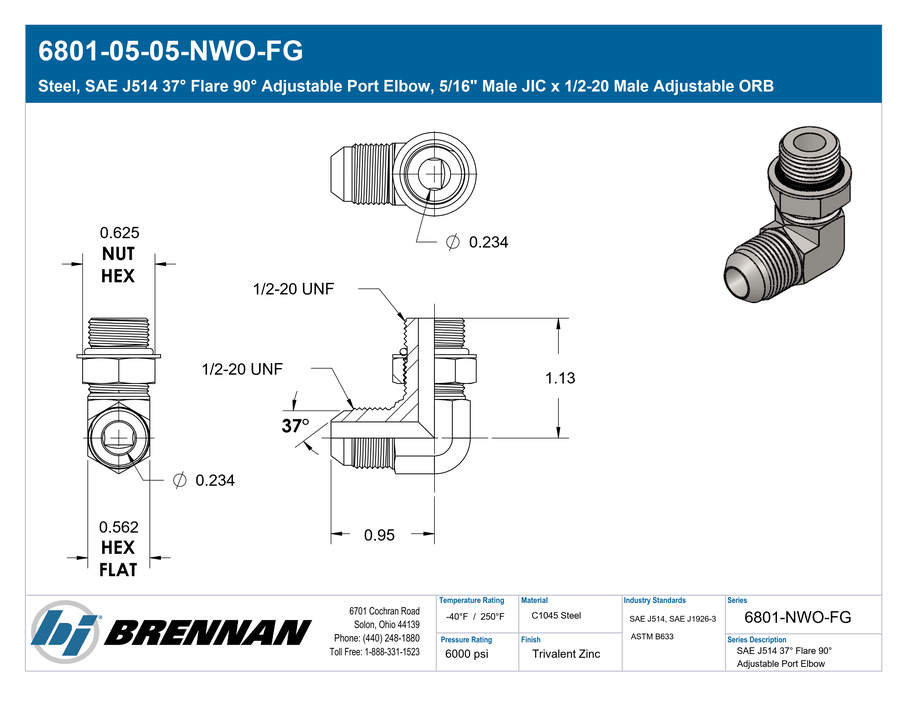

Steel, SAE J514 37° Flare 90° Adjustable Port Elbow, 5/16" Male JIC x 1/2-20 Male Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-05"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2062-5-5S","Parker Hose Part Number":"2503-5-5","Parker TFD Part Number":"5 C5OX-S","SAE J514 Part Number":"SAE J514 5-5 070220CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Adjustable ORB |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J1926-3 Male Adjustable O-Ring Boss 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 90° Elbow |
| Product Type | Fittings |
