Attributes
| Part Number | 2406-16-06-IN |
|---|---|
| Is Series Page | 0 |
Description

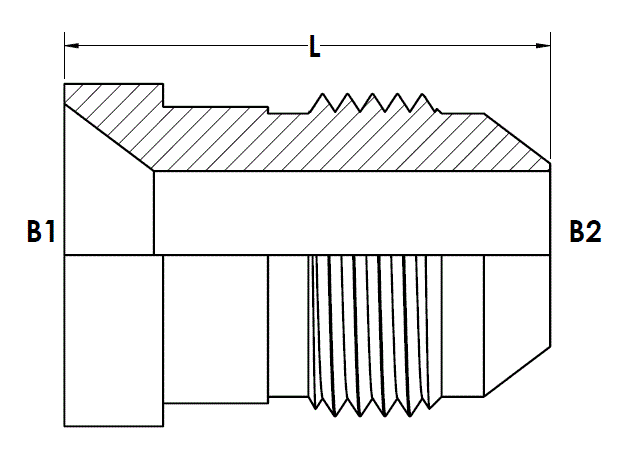

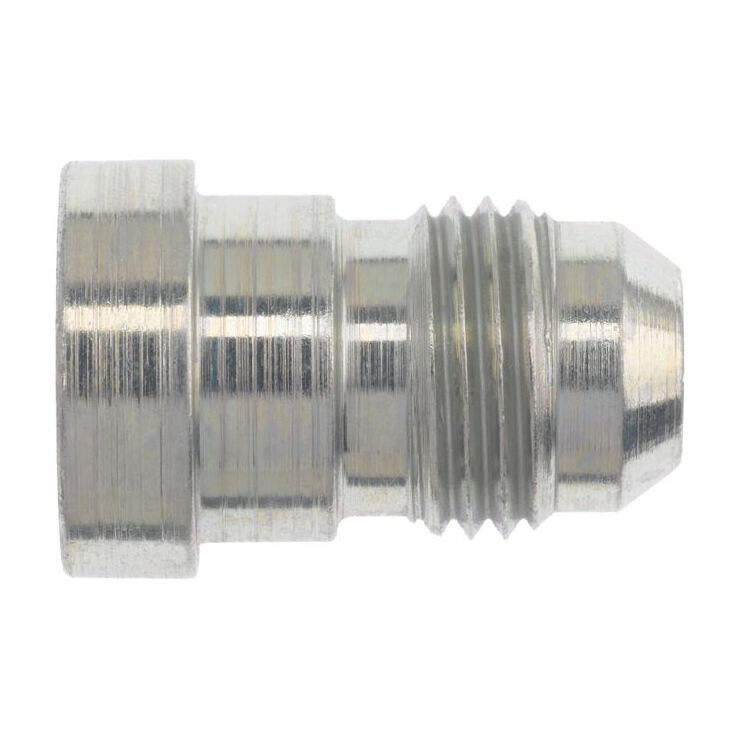

Steel, SAE J514 37° Flare Reducer Insert, 1" JIC Tube Insert x 3/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"JIC Tube Insert","Side 1 Tube OD":"1\"","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer Insert","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF1066-1606S","Parker TFD Part Number":"16-6 TRTX-S","SAE J514 Part Number":"SAE J514 16-6 070123C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female JIC Seat x Male JIC |
| Technical Series Configuration | SAE J514 Female JIC Seat Tube x SAE J514 Male JIC Tube Reducer Insert |
| Side 1 Connection Type | JIC Tube Insert |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
