Attributes
| Part Number | 1502-32-32-SS |
|---|---|
| Is Series Page | 0 |
Description

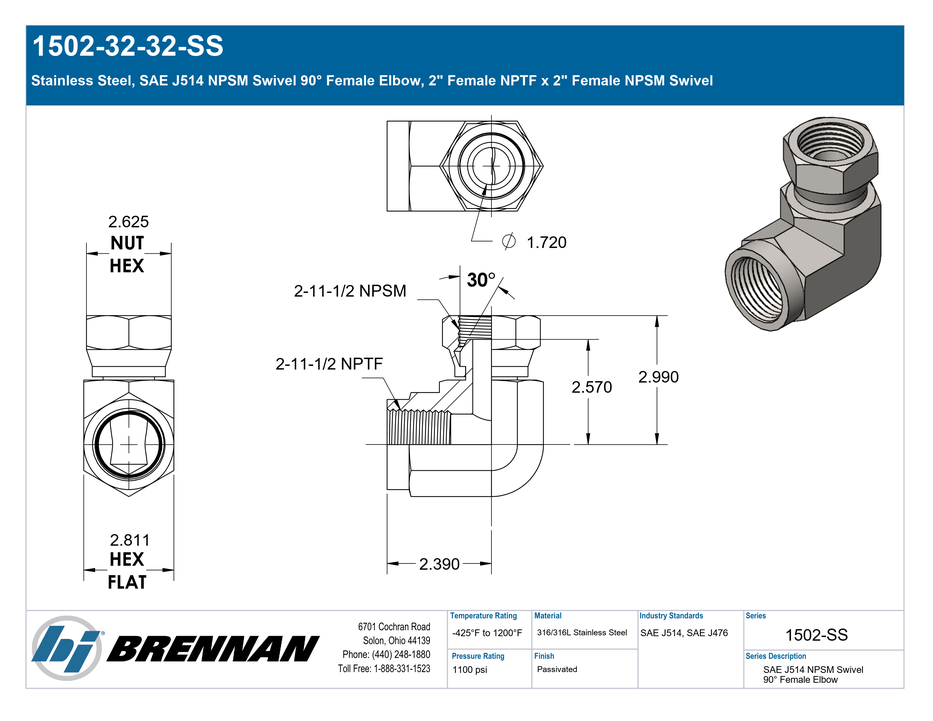

Stainless Steel, SAE J514 NPSM Swivel 90° Female Elbow, 2" Female NPTF x 2" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"2\"","Side 1 Thread Type":"2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"2\"","Side 2 Thread Type":"2-11-1/2 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Female Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"4.91 lb"} |
| Performance Specifications | {"Working Pressure":"1100 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"4400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2048-32-32","Parker TFD Part Number":"2207-32-32-SS","SAE J514 Part Number":"SAE J514 32-32 140231S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe Swivel |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPSM Swivel 90° Elbow |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | 90° Elbow |
| Product Type | Fittings |
