Attributes
| Part Number | D2405-L06-02-SS-X |
|---|---|
| Is Series Page | 0 |
Description

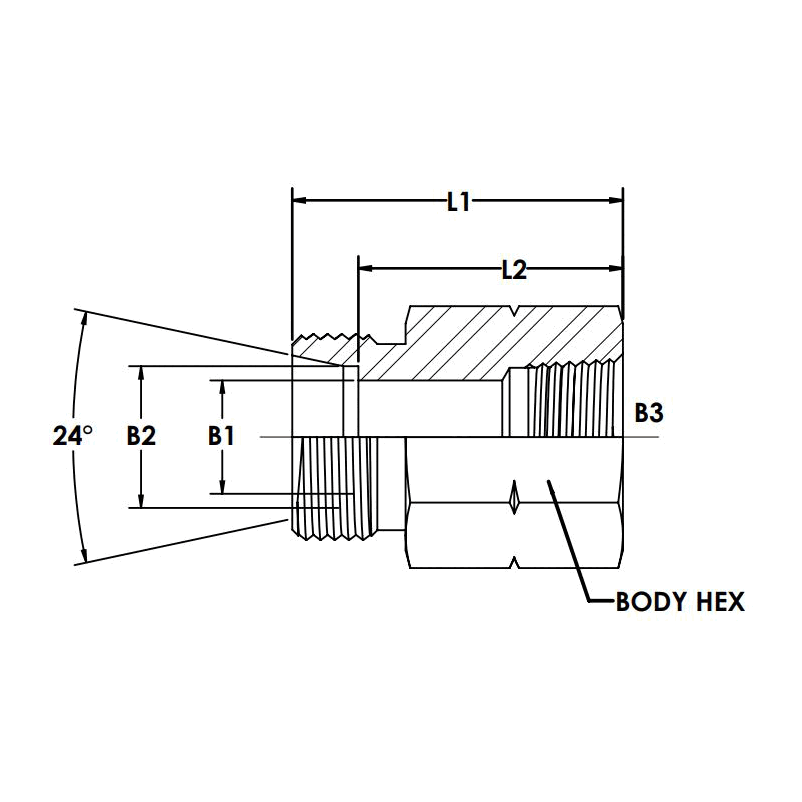

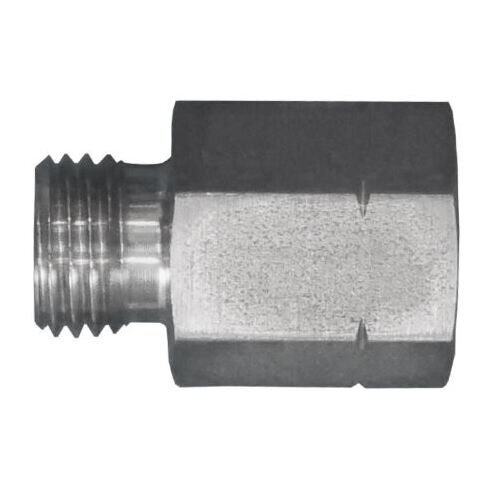

Stainless Steel, DIN 2353 Female Connector, Light 6mm Male DIN x 1/8" NPT, Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"6mm","Side 1 Thread Type":"M12X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Female NPT","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"14mm","Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GAI06L1/8NPT71X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male DIN x Female Pipe, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Female NPT Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Female NPT |
| Shape | Straight |
| Product Type | Fittings |
