Attributes
| Part Number | 1825-24 |
|---|---|
| Is Series Page | 0 |
Description

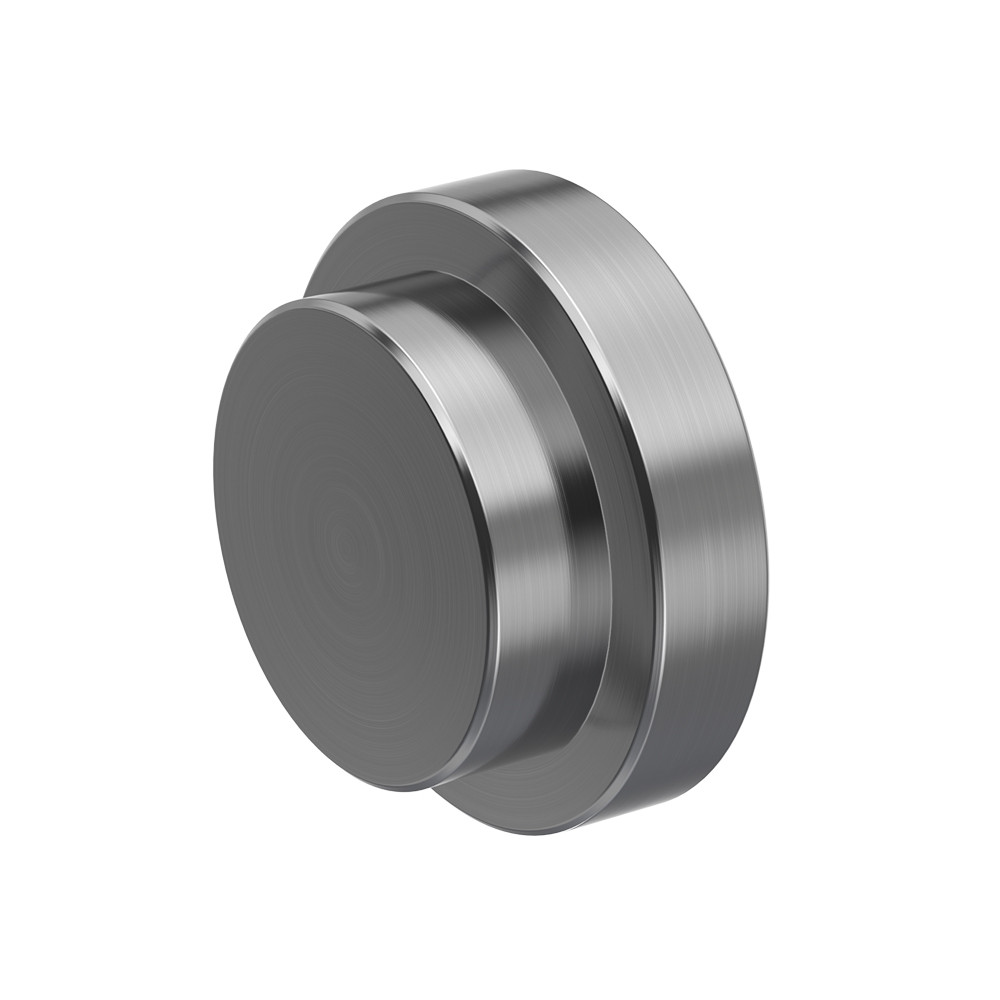

24 Flat Face Flange Plug Code 62
Specifications
| Body & Materials | {"Shape":"Straight","Shape Type":"Flange Head Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
|---|---|
| Dimensions | {"Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"24PQ2NSX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Code 62 Flange Plug (Flat Face) |
| Technical Series Configuration | SAE J518 Code 62 Split Flange Head Plug (Flat Face) |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
No PDF documents.
