Attributes
| Part Number | 9022-32-12 |
|---|---|
| Is Series Page | 0 |
Description

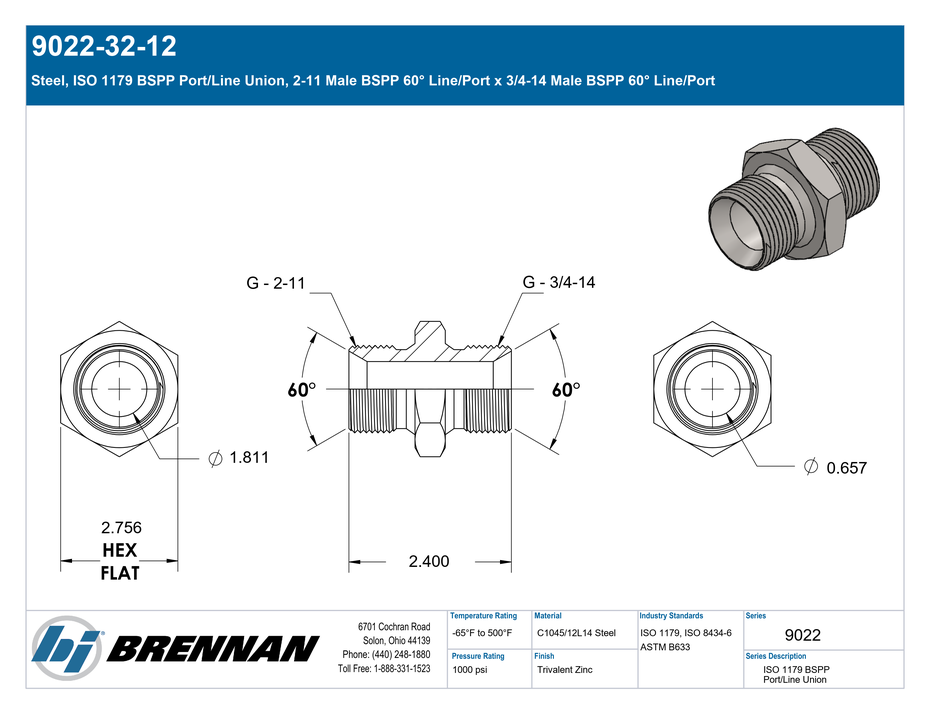

Steel, ISO 1179 BSPP Port/Line Union, 2-11 Male BSPP 60° Line/Port x 3/4-14 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPP 60° Line/Port","Side 1 Thread Type":"G - 2-11","Side 1 Standard":"ISO 8434-6, ISO 1179","Side 1 Role":"Line/Port Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"2.756","Weight":"0.97 lb"} |
| Performance Specifications | {"Working Pressure":"1000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"4000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"32-12HMK4S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male BSPP x Male BSPP |
| Technical Series Configuration | ISO 1179/ISO 8434-6 Male BSPP Line/Port x Male BSPP Line/Port Union |
| Side 1 Connection Type | Male BSPP 60° Line/Port |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
