Attributes
| Part Number | D7405-S10-06-SS-X |
|---|---|
| Is Series Page | 0 |
Description

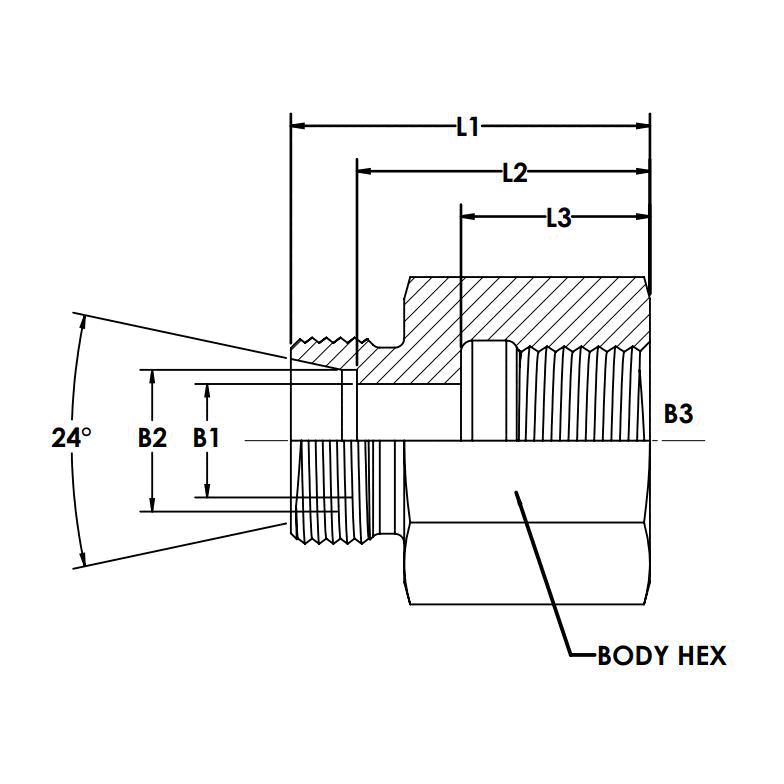

Stainless Steel, DIN 2353 Female Connector, Heavy 10mm Male DIN x 3/8" BSPP (Type G), Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"10mm","Side 1 Thread Type":"M18X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"Female BSPP","Side 2 Thread Type":"G - 3/8-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"24mm","Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"5802 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"23208 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GAI10SR71X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male DIN x Female BSPP, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 1179-1 Female BSPP Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Female BSPP |
| Shape | Straight |
| Product Type | Fittings |
