| Part Number | 5505-16-16-FG |
|---|---|
| Is Series Page | 0 |
Description

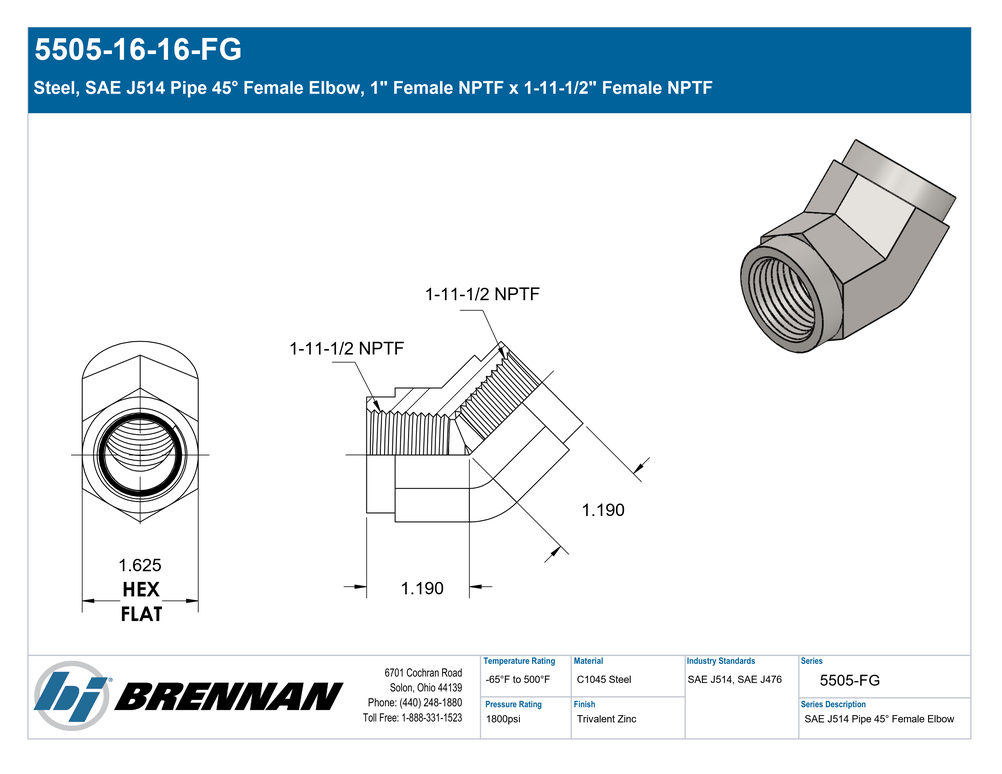

Steel, SAE J514 Pipe 45° Female Elbow, 1" Female NPTF x 1" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"1\"","Side 1 Thread Type":"1-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Female Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.74 lb"} |
| Performance Specifications | {"Working Pressure":"1800 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"7200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2086-16-16S","Parker Hose Part Number":"4202-16-16","Parker TFD Part Number":"1 DD45-S","SAE J514 Part Number":"SAE J514 16-16 140338C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPTF 45° Elbow |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | 45° Elbow |
| Product Type | Fittings |
