Attributes
| Part Number | 5602-02-02-02-FG |
|---|---|
| Is Series Page | 0 |
Description

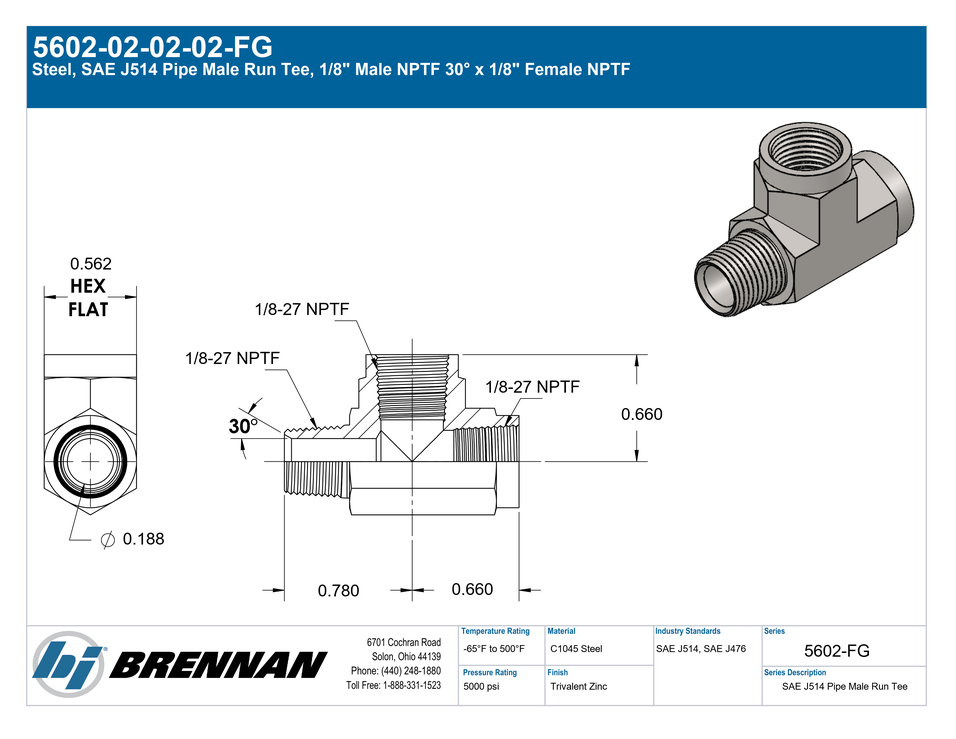

Steel, SAE J514 Pipe Male Run Tee, 1/8" Male NPTF 30° x 1/8" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/8\"","Side 1 Thread Type":"1/8-27 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/8\"","Side 3 Thread Type":"1/8-27 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2092-2-2S","Parker Hose Part Number":"012T-2-2","Parker TFD Part Number":"1/8 MRO-S","SAE J514 Part Number":"SAE J514 2-2-2 140424C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF x Female NPTF Run Tee |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
