Attributes
| Part Number | FS7005-04-10-BS |
|---|---|
| Is Series Page | 0 |
Description

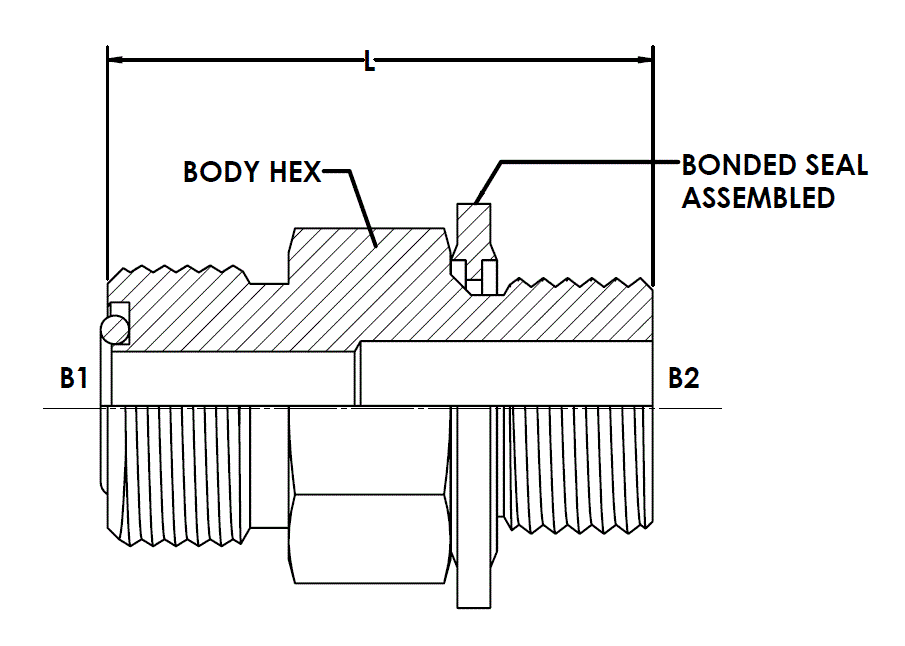

Steel, SAE J1453 O-Ring Face Seal Metric (Type D) Bonded Seal Connector, 1/4" Male ORFS x M10X1.0 Male Metric 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-04","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M10X1.0","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"8800-10"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.630","Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORFS x Male Metric Bonded Seal |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x ISO 9974 (Type D) Male Metric Port Connector With Bonded Seal |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male Metric 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
