Attributes
| Part Number | 1824-24 |
|---|---|
| Is Series Page | 0 |
Description

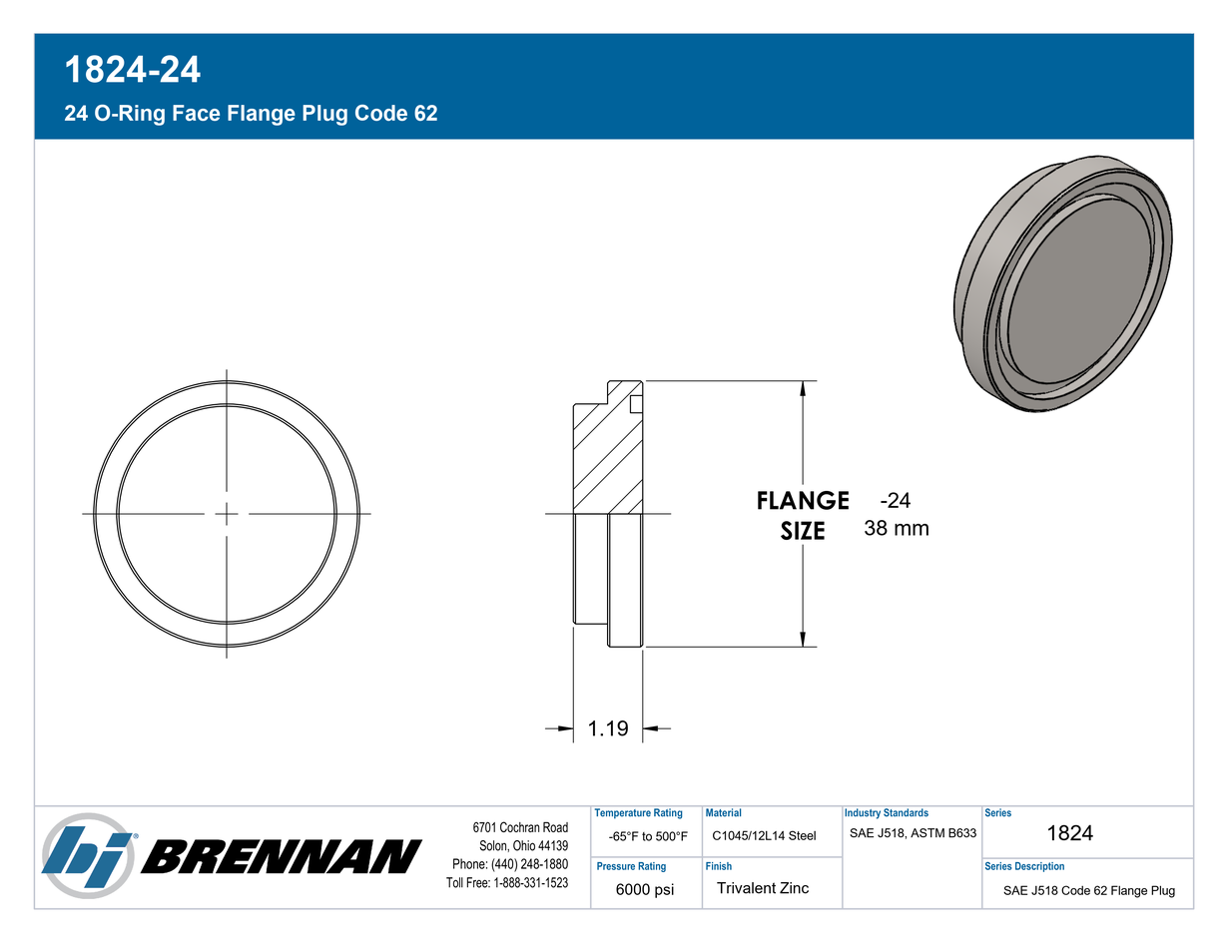

Steel, SAE J518 Code 62 Split Flange Plug, 1-1/2" Flange Plug
Specifications
| Connection Details | {"Connection Type":"Flange Plug","Flange Size":"1-1/2\"","Standard":"SAE J518","Connection Standard":"SAE J518","Role":"Flange Connection","Connection Role":"Flange Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Flange Head Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.24 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"24PQ2SX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Code 62 Flange Plug |
| Technical Series Configuration | SAE J518 Code 62 Split Flange Head Plug |
| Side 1 Connection Type | Flange Plug |
| Shape | Cap/Plug |
| Product Type | Fittings |
