Attributes
| Part Number | FS0306-12 |
|---|---|
| Is Series Page | 0 |
Description

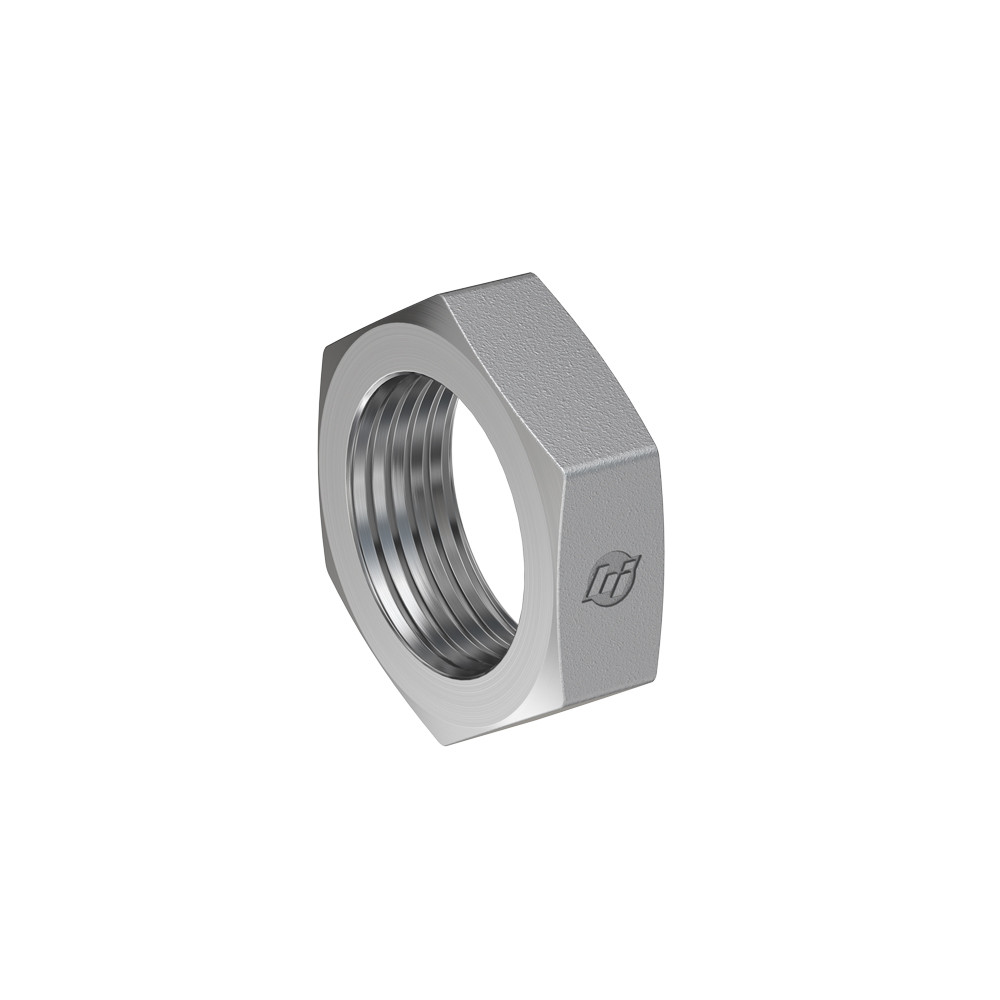

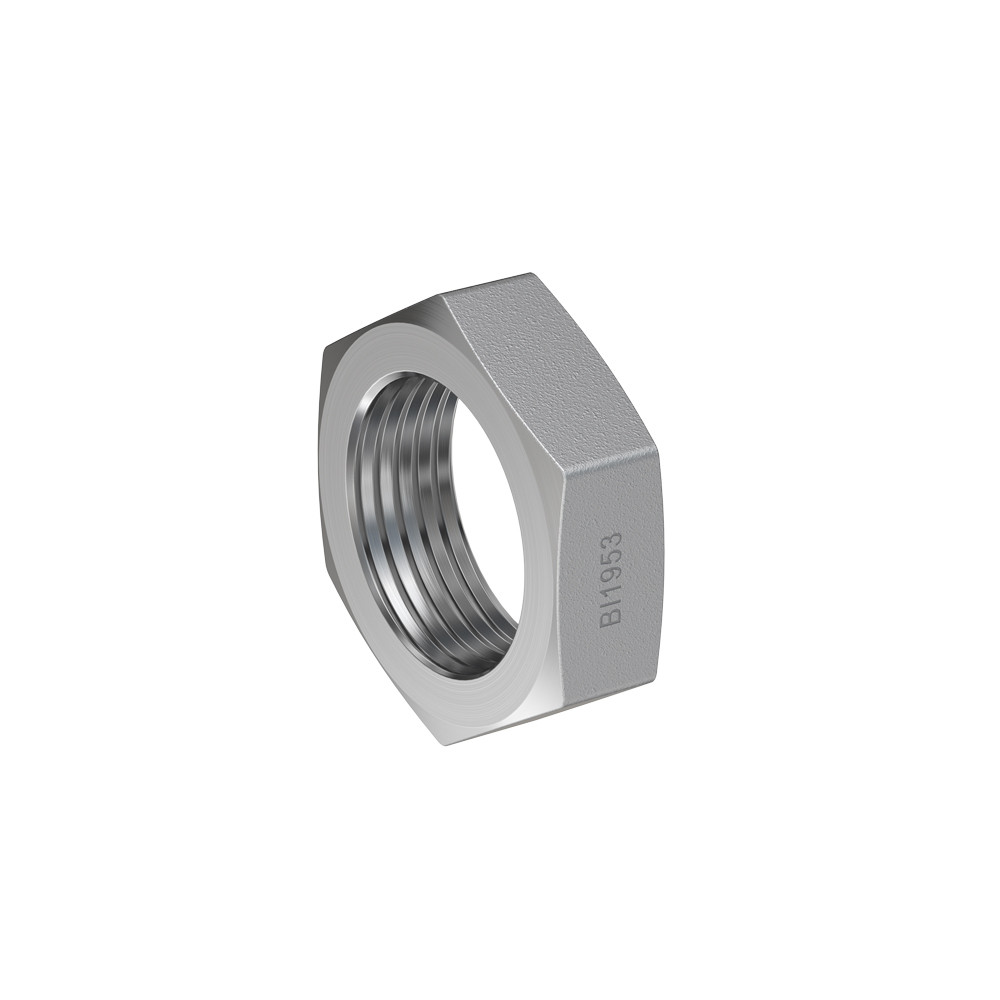

Steel, SAE J1453 O-Ring Face Seal Bulkhead Lock Nut, 3/4" ORFS Locknut
Specifications
| Connection Details | {"Connection Type":"ORFS Locknut","Tube OD":"3/4\"","Thread Type":"1-3/16-12 UN","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"FF9768-12S","Parker TFD Part Number":"12 WLNL-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | ORFS Bulkhead Lock Nut |
| Technical Series Configuration | SAE J1453 ORFS Bulkhead Tube Lock Nut |
| Side 1 Connection Type | ORFS Locknut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
