Attributes
| Part Number | 2706-04-04 |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Flared Tube Male Bulkhead, 1/4" Male NPTF 30° x 3/8" Male JIC
Specifications
| Series Configuration | Male Pipe x Male JIC Bulkhead |
|---|---|
| Technical Series Configuration | SAE J476 Male NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

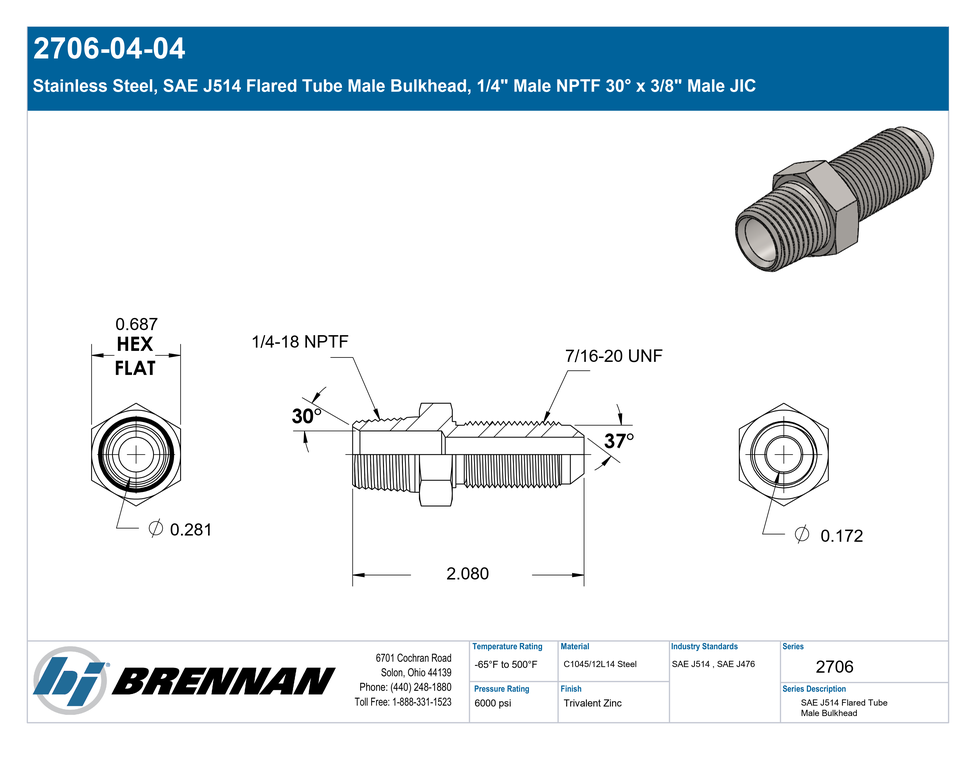

Specification Sheet
Open PDF
