Attributes
| Part Number | 2705-LN-06-06-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Flared Tube Female Bulkhead, 3/8" Female NPTF x 3/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Bulkhead","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.23 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2239-6-6","Parker TFD Part Number":"6-6 WGTX-WLN-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Pipe x Male JIC Bulkhead, With Lock Nut |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

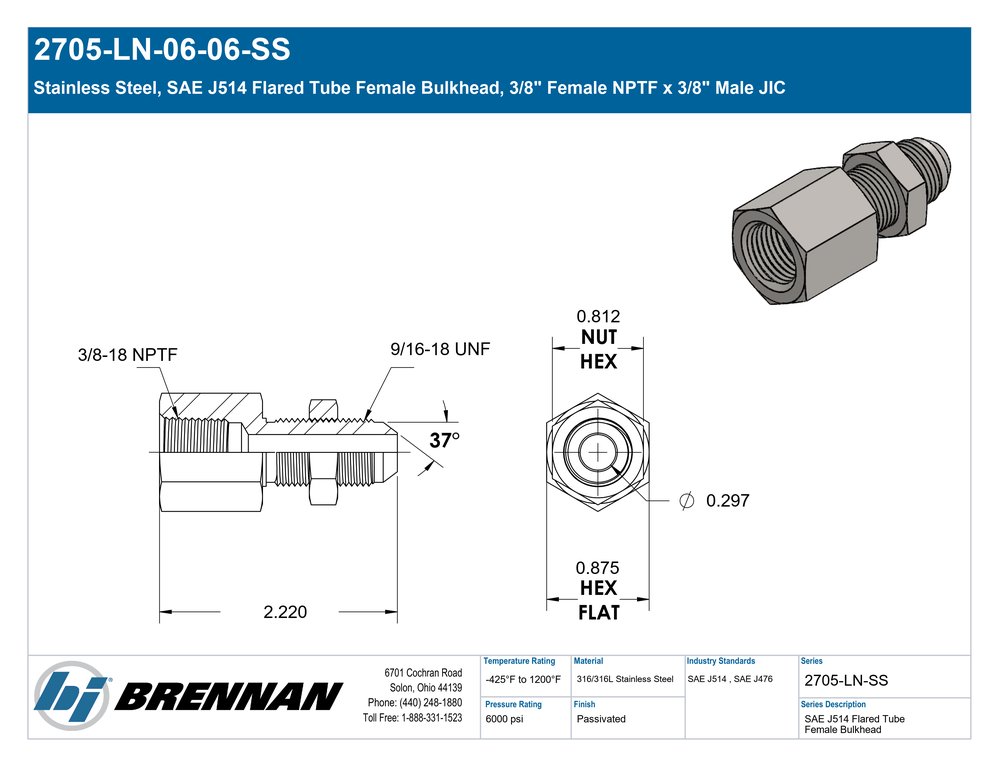

Specification Sheet
