Attributes
| Part Number | 2500-02-02-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare 90° Union Elbow, 1/8" Male JIC x 1/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-24 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1/8\"","Side 2 Thread Type":"5/16-24 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Union Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"7500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"30000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2039-2-2S","Parker Hose Part Number":"2303-2-2","Parker TFD Part Number":"2 ETX-S","SAE J514 Part Number":"SAE J514 2-2 070201C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube 90° Union Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

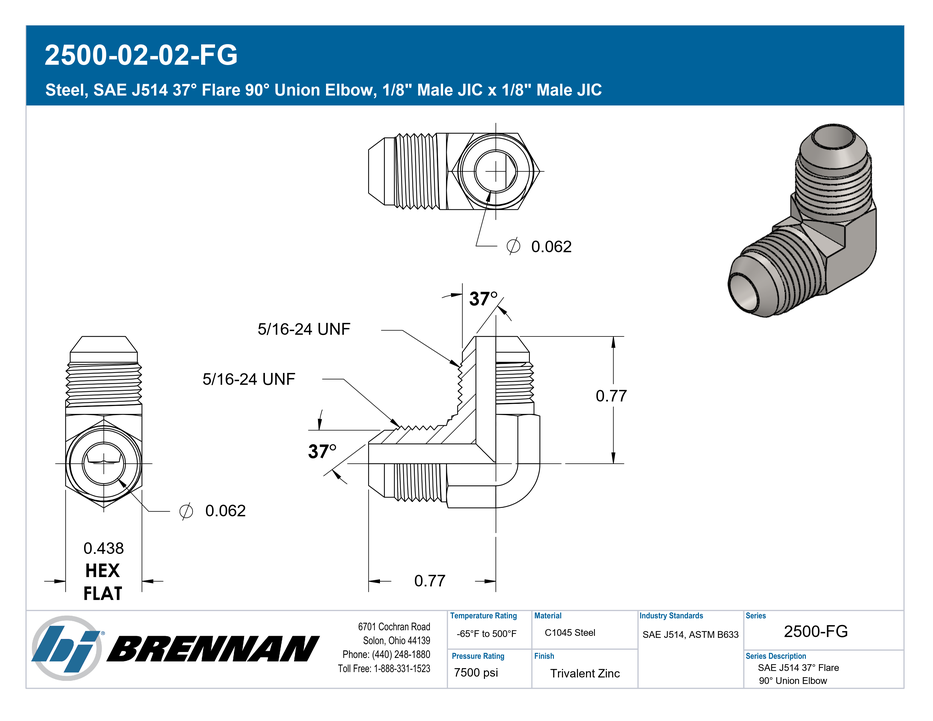

Specification Sheet
