| Part Number | 2605-08-08-06-FG |
|---|---|
| Is Series Page | 0 |
Description

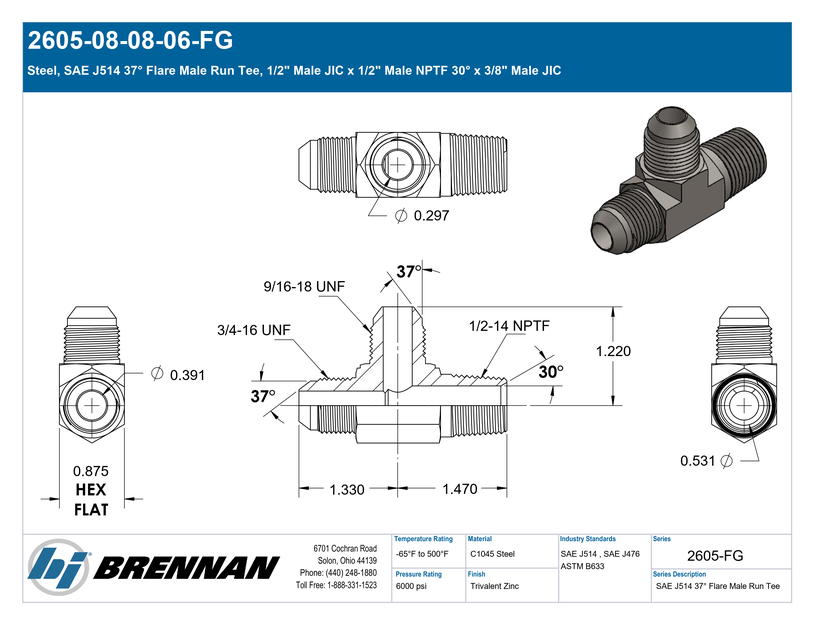

Steel, SAE J514 37° Flare Male Run Tee, 1/2" Male JIC x 1/2" Male NPTF 30° x 3/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/8\"","Side 3 Thread Type":"9/16-18 UNF","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.34 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8-8-6 RTX-S","SAE J514 Part Number":"SAE J514 8-8-6 070424C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Pipe x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF x Male JIC Tube Run Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Tee |
| Product Type | Fittings |
