Attributes
| Part Number | FS6504-08-12 |
|---|---|
| Is Series Page | 0 |
Description

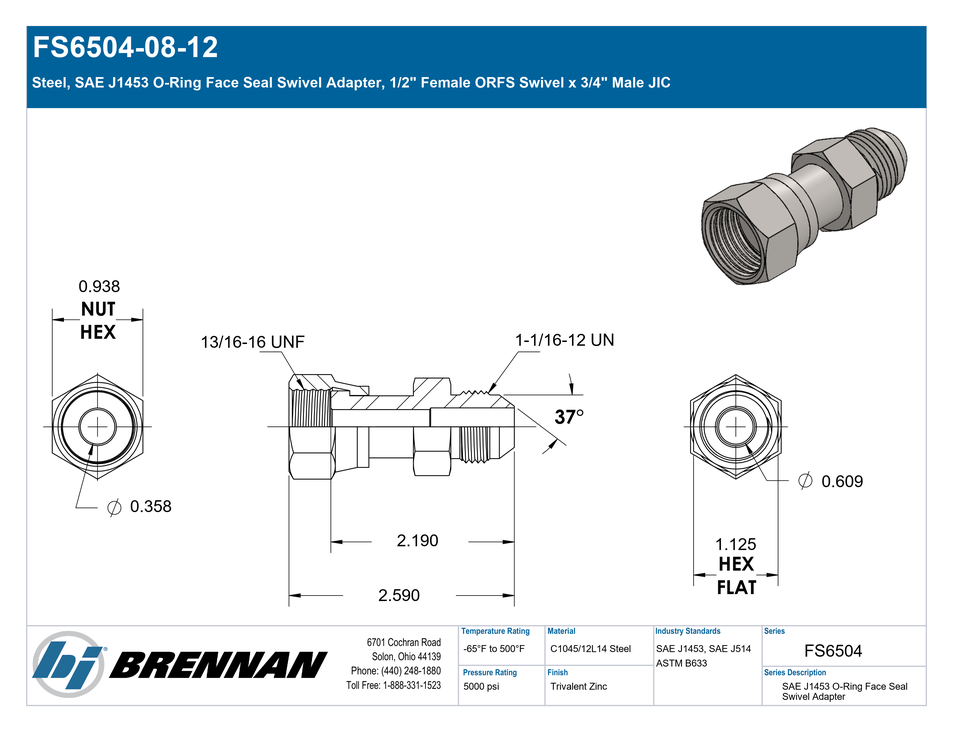

Steel, SAE J1453 O-Ring Face Seal Swivel Adapter, 1/2" Female ORFS Swivel x 3/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORFS Swivel","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"13/16-16 UNF","Side 1 Standard":"SAE J1453","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.35 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF2209T0812S","Parker TFD Part Number":"12-8 XHL6-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female ORFS Swivel x Male JIC |
| Technical Series Configuration | SAE J1453 Female ORFS Swivel x Male JIC Tube Adapter |
| Side 1 Connection Type | Female ORFS Swivel |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
