Attributes
| Part Number | D8400-S16-22-O-ISO 6149-X |
|---|---|
| Is Series Page | 0 |
Description

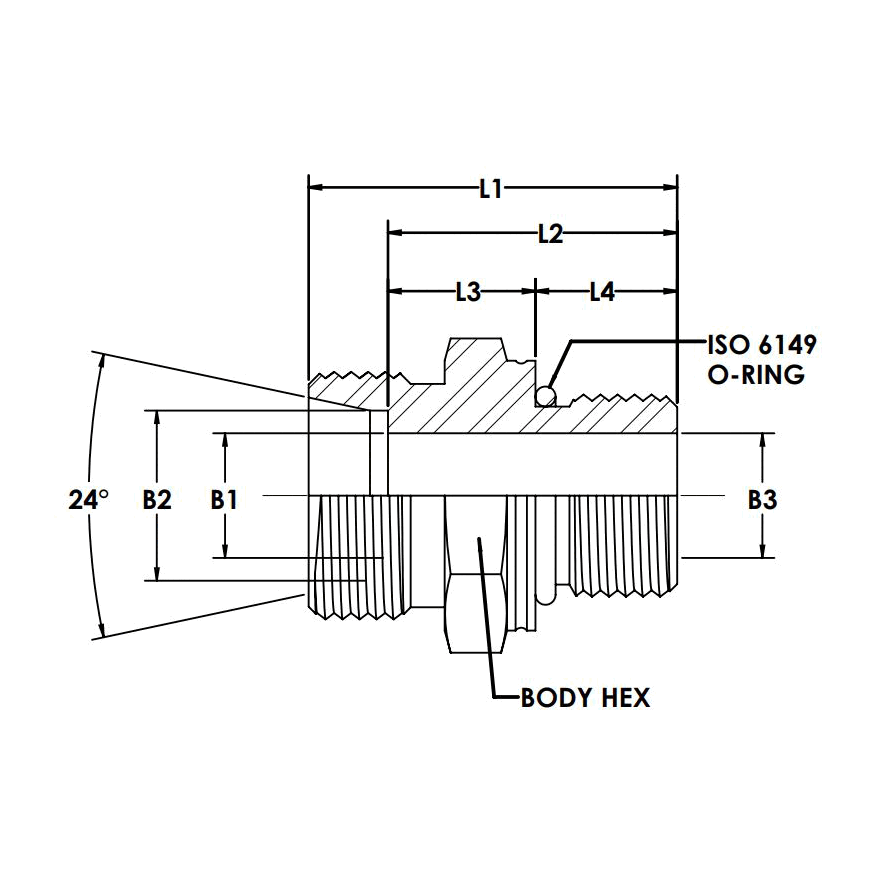

Steel, DIN 2353 Male Connector, Heavy 16mm Male DIN x 22mm Metric (ISO 6149), Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"16mm","Side 1 Thread Type":"M24X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"Male Metric ORB","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"ISO 6149","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"8900-22"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"27mm","Weight":"0.38 lb"} |
| Performance Specifications | {"Working Pressure":"9137 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"36548 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GEO16SMOMDCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male DIN x Male Metric ORB (ISO 6149), Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ISO 6149 Male Metric Port Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Male Metric ORB |
| Shape | Straight |
| Product Type | Fittings |
