Attributes
| Part Number | 6408-H02-O-VITON |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J1926 O-Ring Boss Hollow Hex Plug, 5/16-24 Male ORB, FKM Seal
Specifications
| Connection Details | {"Connection Type":"Male ORB","Thread Type":"5/16-24 UNF","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4001-02"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.01 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-FF2138-02","Parker TFD Part Number":"2 HP5ON-S FKM","SAE J514 Part Number":"SAE J514 2 090109BCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB Hollow Hex Plug |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss Hollow Hex Plug |
| Side 1 Connection Type | Male ORB |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

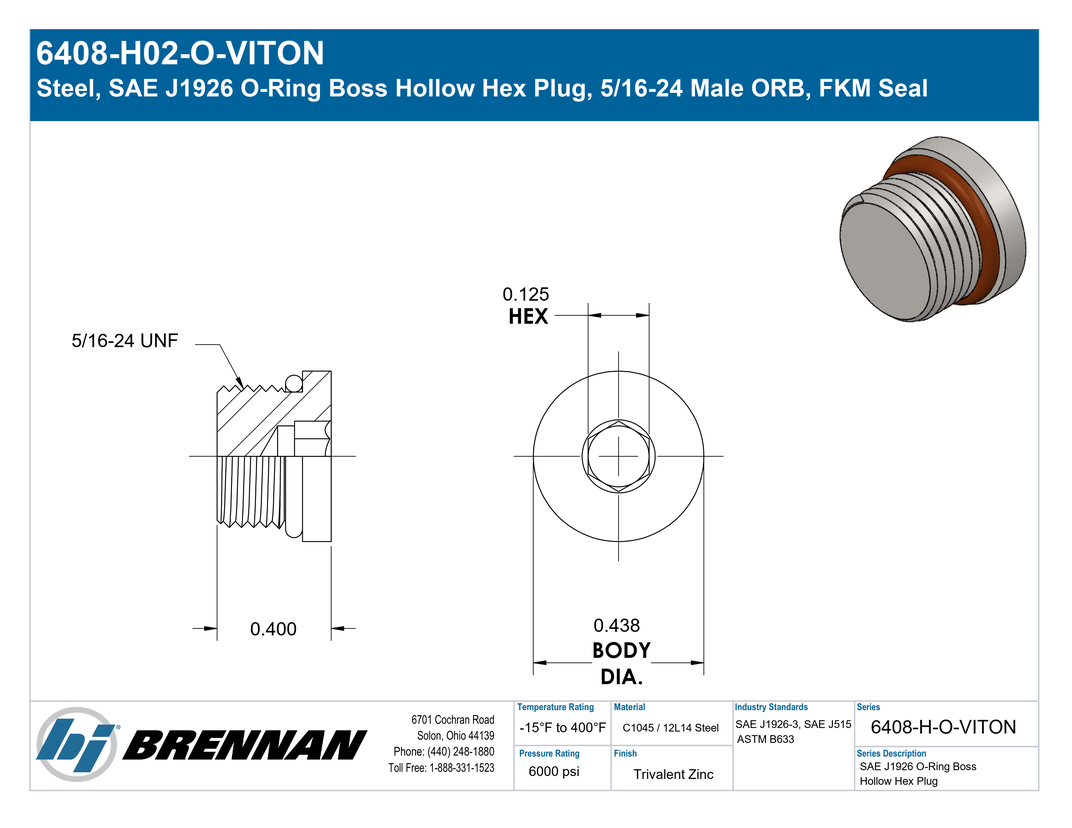

Specification Sheet
