| Part Number | 6803-16-16-16-NWO-SS-VITON |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Adjustable Port Branch Tee, 1" Male JIC x 1" Male JIC x 1-5/16-12 Male Adjustable ORB, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male Adjustable ORB","Side 3 Thread Type":"1-5/16-12 UN","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4001-16"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Adjustable Branch Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"1.12 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"213-259-203003-16-16","Parker TFD Part Number":"16 S5OX-SS FKM","SAE J514 Part Number":"SAE J514 16-16-16 070429SF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male Adjustable ORB |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC x SAE J1926-3 Male Adjustable O-Ring Boss Branch Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

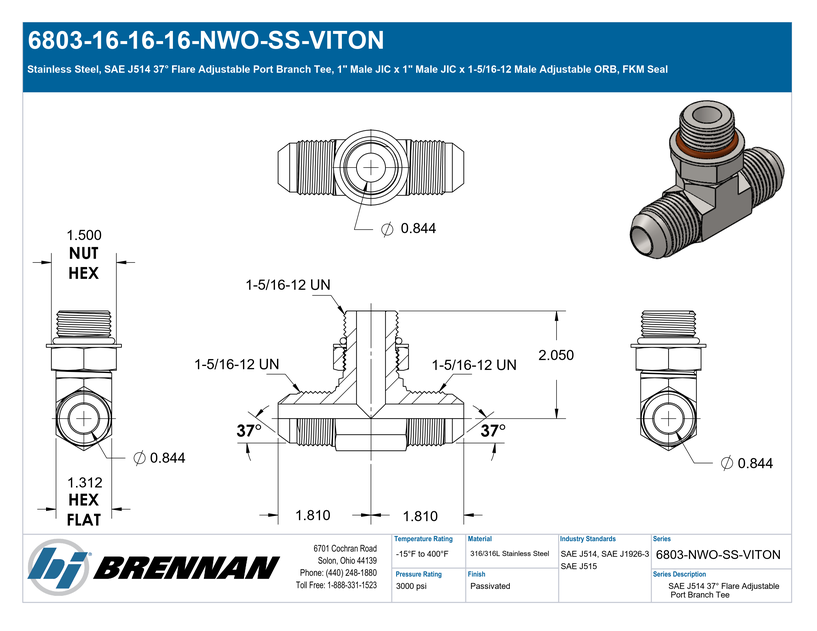

Specification Sheet
Open PDF
