Attributes
| Part Number | 7012-04-04-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Male BSPP Type (G) Port Connector, 1/4" Male JIC x 1/4-19 Male BSPP ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP ORR","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-04","Side 2 Replacement Washer":"9200-04-SS"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.748","Weight":"0.07 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-GG106-NP-04-04","Parker TFD Part Number":"4-4F4OMXSS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP (Type G) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Male BSPP Type (G) ORR Port Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP ORR |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

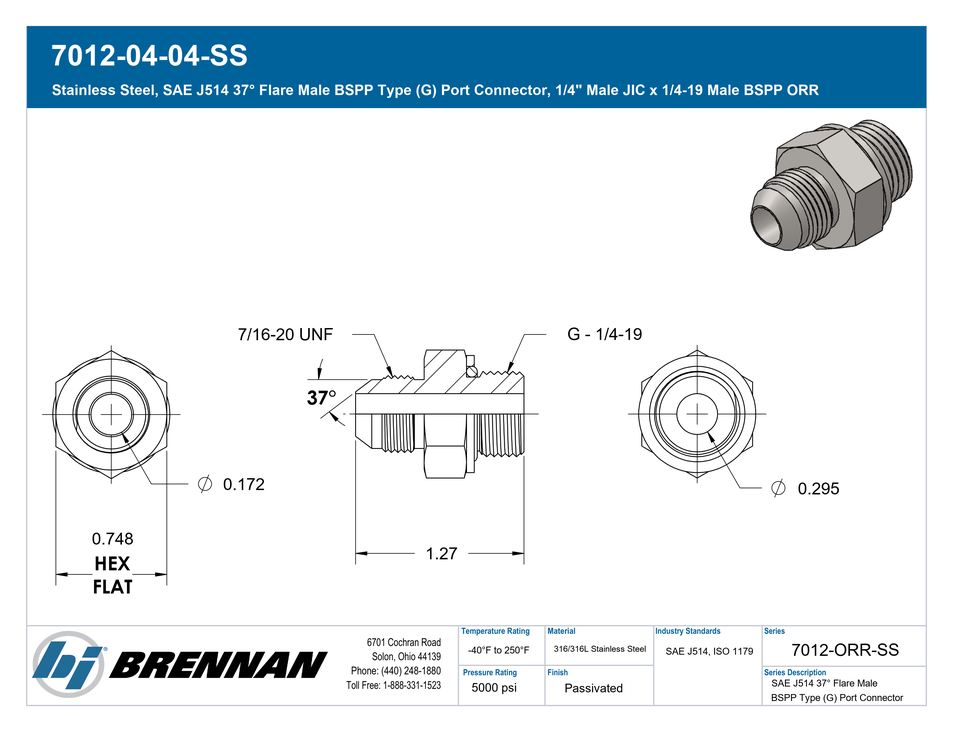

Specification Sheet
Open PDF
