Attributes
| Part Number | 7102-06-04-NWO-FG-B2351 |
|---|---|
| Is Series Page | 0 |
Description

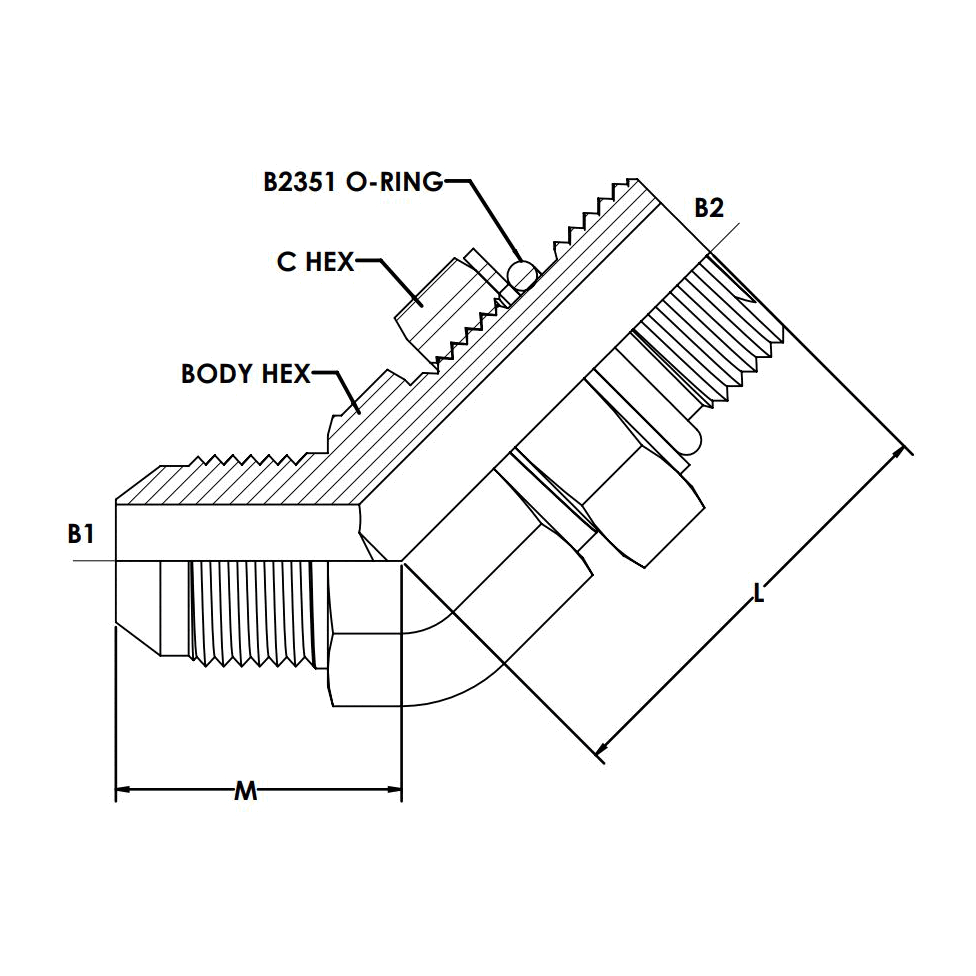

Steel, SAE J514 37° Flare Male BSPP Adjustable (JIS B2351) Port 45° Elbow, 3/8" Male JIC x 1/4-19 Male BSPP Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP Adjustable ORB","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"JIS B2351","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9903-04"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.562","Weight":"0.37 lb"} |
| Performance Specifications | {"Working Pressure":"3600 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"14400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP Adjustable O-Ring Boss |
| Technical Series Configuration | SAE J514 Male JIC Tube x JIS B2351 Male BSPP Adjustable O-Ring Boss (JIS B2351) Port 45° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP Adjustable ORB |
| Shape | 45° Elbow |
| Product Type | Fittings |
