Attributes
| Part Number | 2501-12-12-FG |
|---|---|
| Is Series Page | 0 |
Description

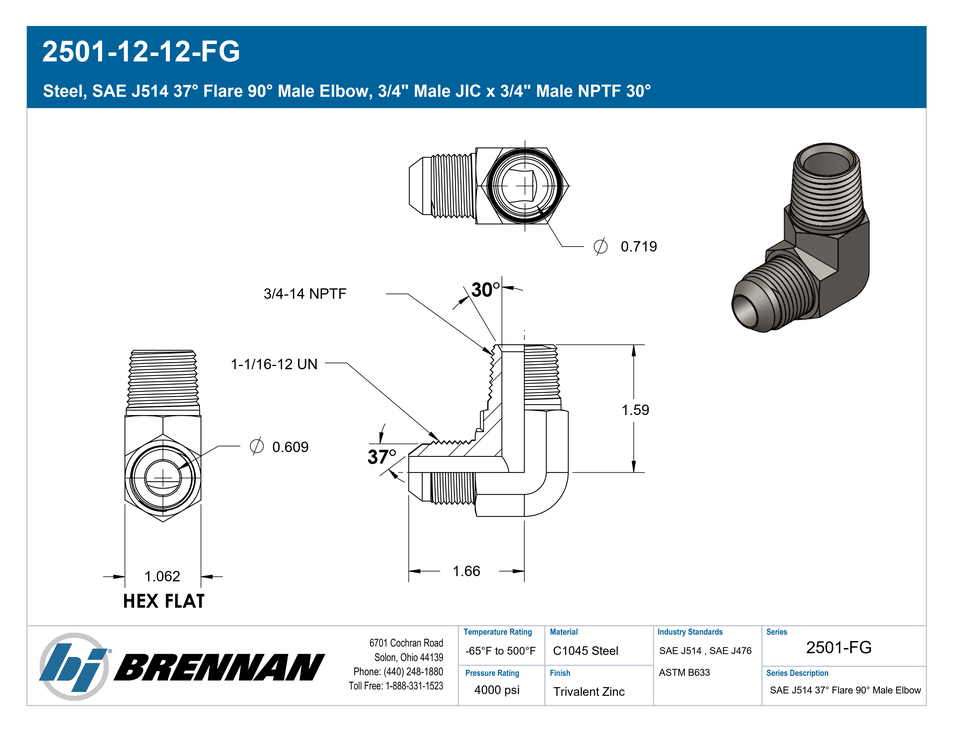

Steel, SAE J514 37° Flare 90° Male Elbow, 3/4" Male JIC x 3/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.062","Weight":"0.44 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2024-12-12S","Parker Hose Part Number":"2103-12-12","Parker TFD Part Number":"12 CTX-S","SAE J514 Part Number":"SAE J514 12-12 070202C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
