Attributes
| Part Number | 6809-10-08-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Swivel 90° Adjustable Port Elbow, 7/8-14 Male Adjustable ORB x 1/2" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-10","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1/2\"","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.39 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2214-10-8S","Parker TFD Part Number":"8-10 AOEX6-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Female JIC Swivel |
| Technical Series Configuration | SAE J1926-3 Male Adjustable O-Ring Boss x SAE J514 Female JIC Swivel Tube 90° Elbow |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

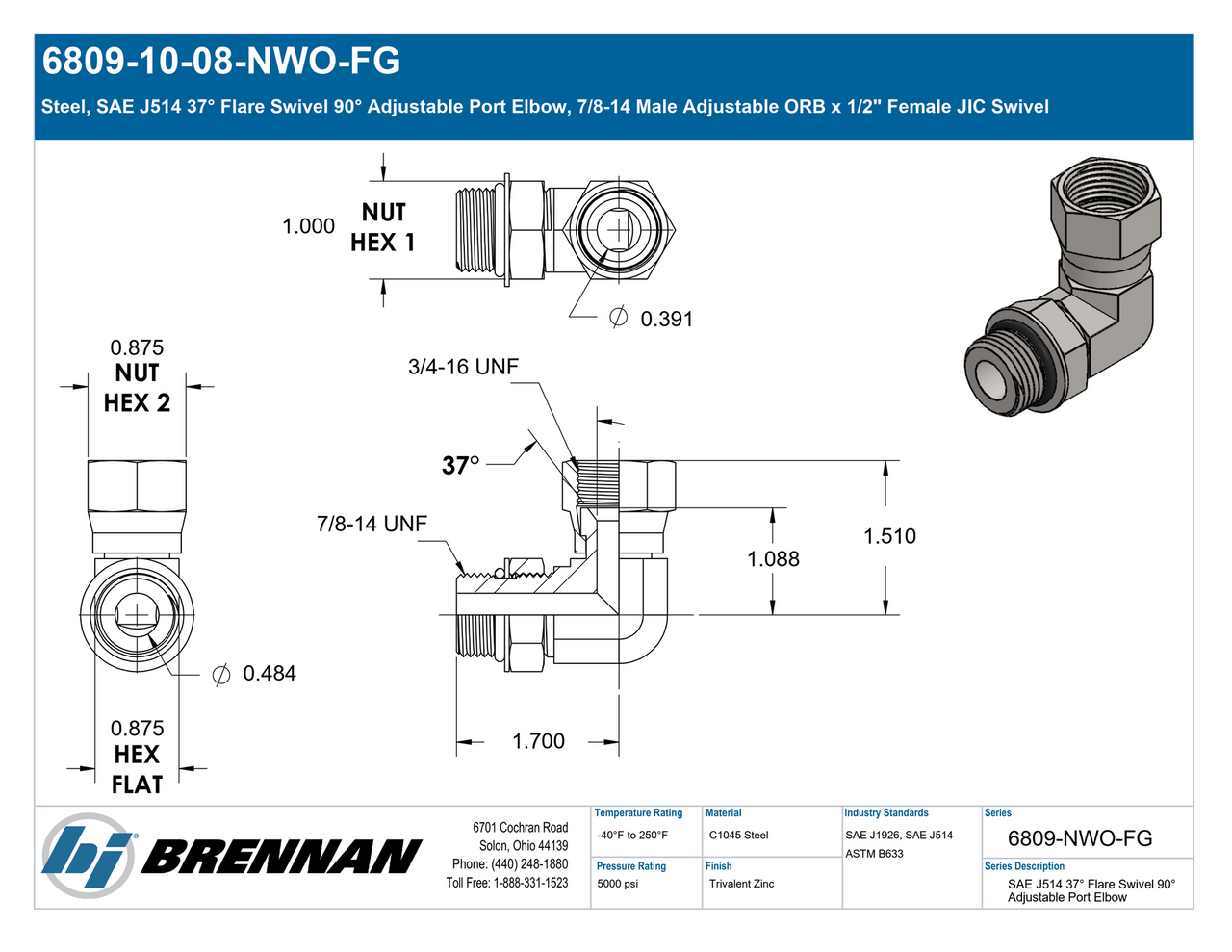

Specification Sheet
Open PDF
