Attributes
| Part Number | FS7640-10-27-O |
|---|---|
| Is Series Page | 0 |
Description

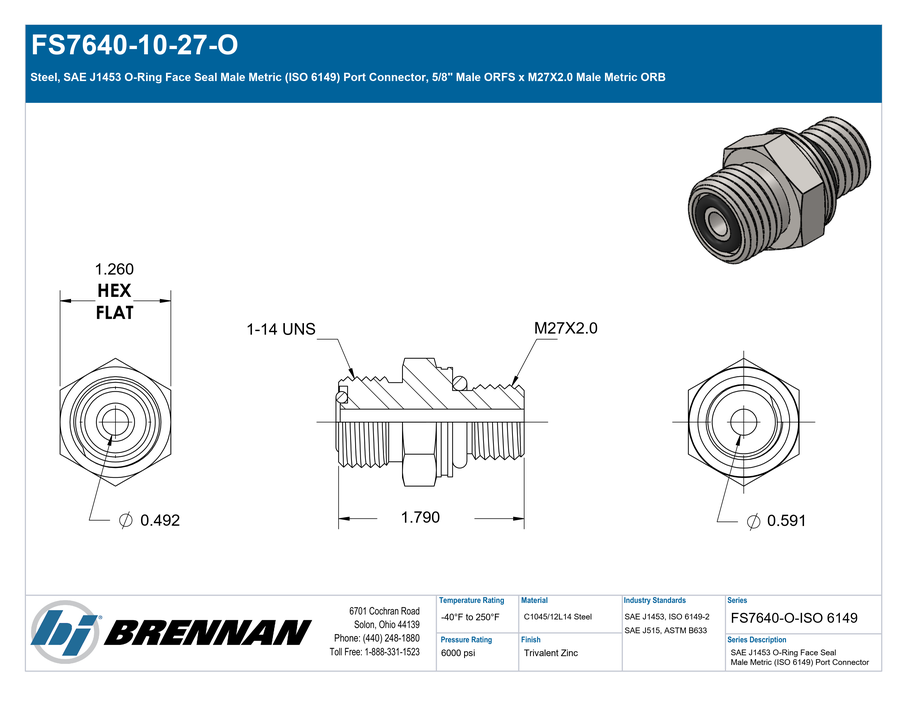

Steel, SAE J1453 O-Ring Face Seal Male Metric (ISO 6149) Port Connector, 5/8" Male ORFS x M27X2.0 Male Metric ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"1-14 UNS","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-10","Side 2 Connection Type":"Male Metric ORB","Side 2 Thread Type":"M27X2.0","Side 2 Standard":"ISO 6149","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"8900-27"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.260","Weight":"0.33 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF2742T-1027S","Parker TFD Part Number":"10M27F87OMLOS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORFS x Male Metric O-Ring Boss |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x ISO 6149 Male Metric O-Ring Boss Port Connector |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male Metric ORB |
| Shape | Straight |
| Product Type | Fittings |
