Attributes
| Part Number | 2706-LN-24-24 |
|---|---|
| Is Series Page | 0 |
Description

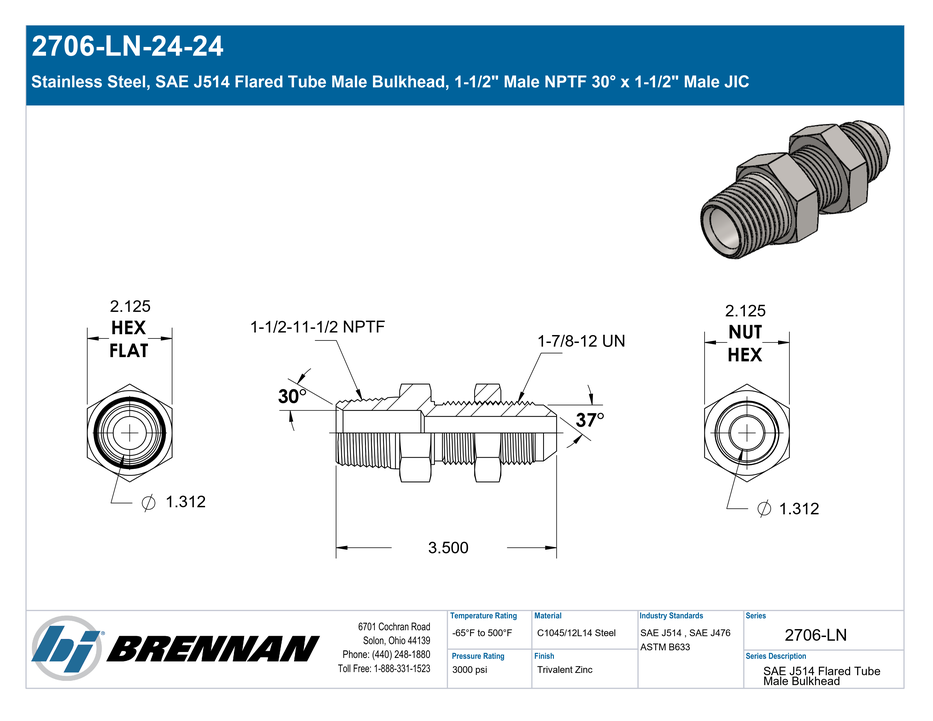

Stainless Steel, SAE J514 Flared Tube Male Bulkhead, 1-1/2" Male NPTF 30° x 1-1/2" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"2.125","Weight":"1.51 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2240-24-24S","Parker TFD Part Number":"24 WFTX-WLN-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Male JIC Bulkhead, With Lock Nut |
| Technical Series Configuration | SAE J476 Male NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
