Attributes
| Part Number | 5406-C-08 |
|---|---|
| Is Series Page | 0 |
Description

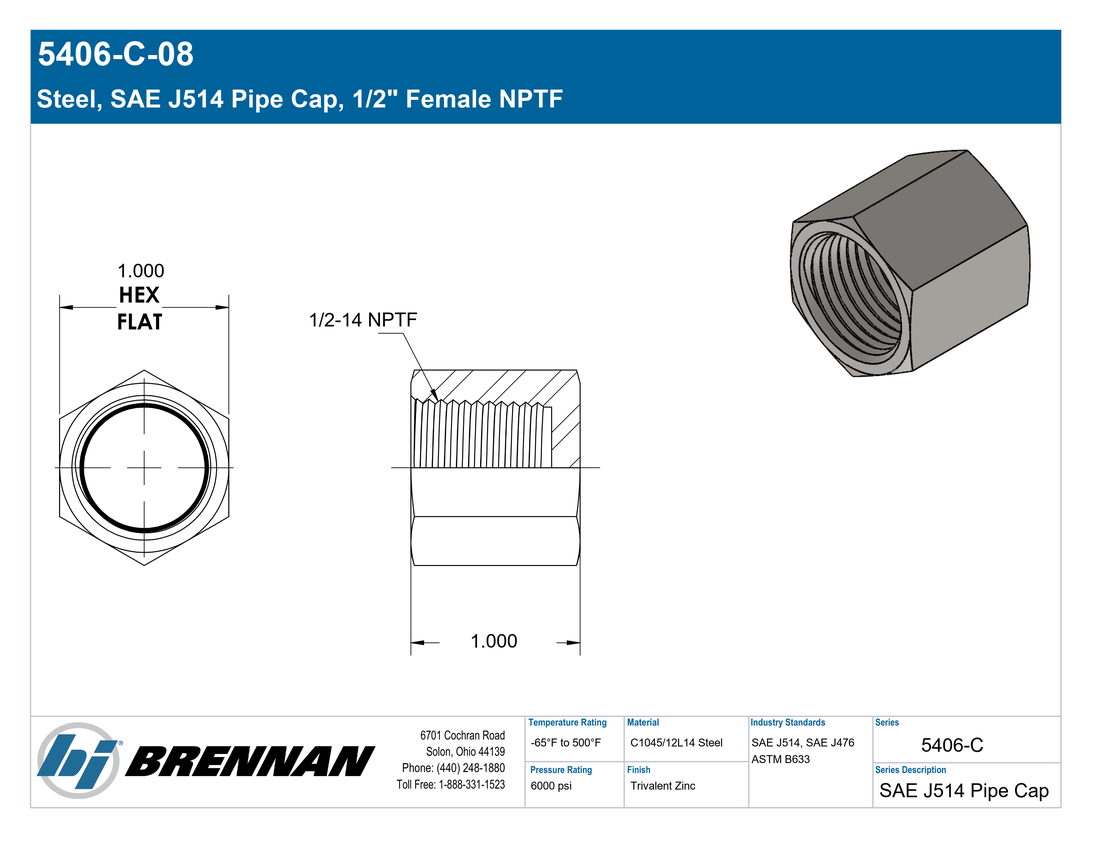

Steel, SAE J514 Pipe Cap, 1/2" Female NPTF
Specifications
| Connection Details | {"Connection Type":"Female NPTF","Pipe Size":"1/2\"","Thread Type":"1/2-14 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.15 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/2 HPC-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Pipe Cap |
| Technical Series Configuration | SAE J476 Female NPTF Pipe Cap |
| Side 1 Connection Type | Female NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
