Attributes
| Part Number | D0319-14 |
|---|---|
| Is Series Page | 0 |
Description

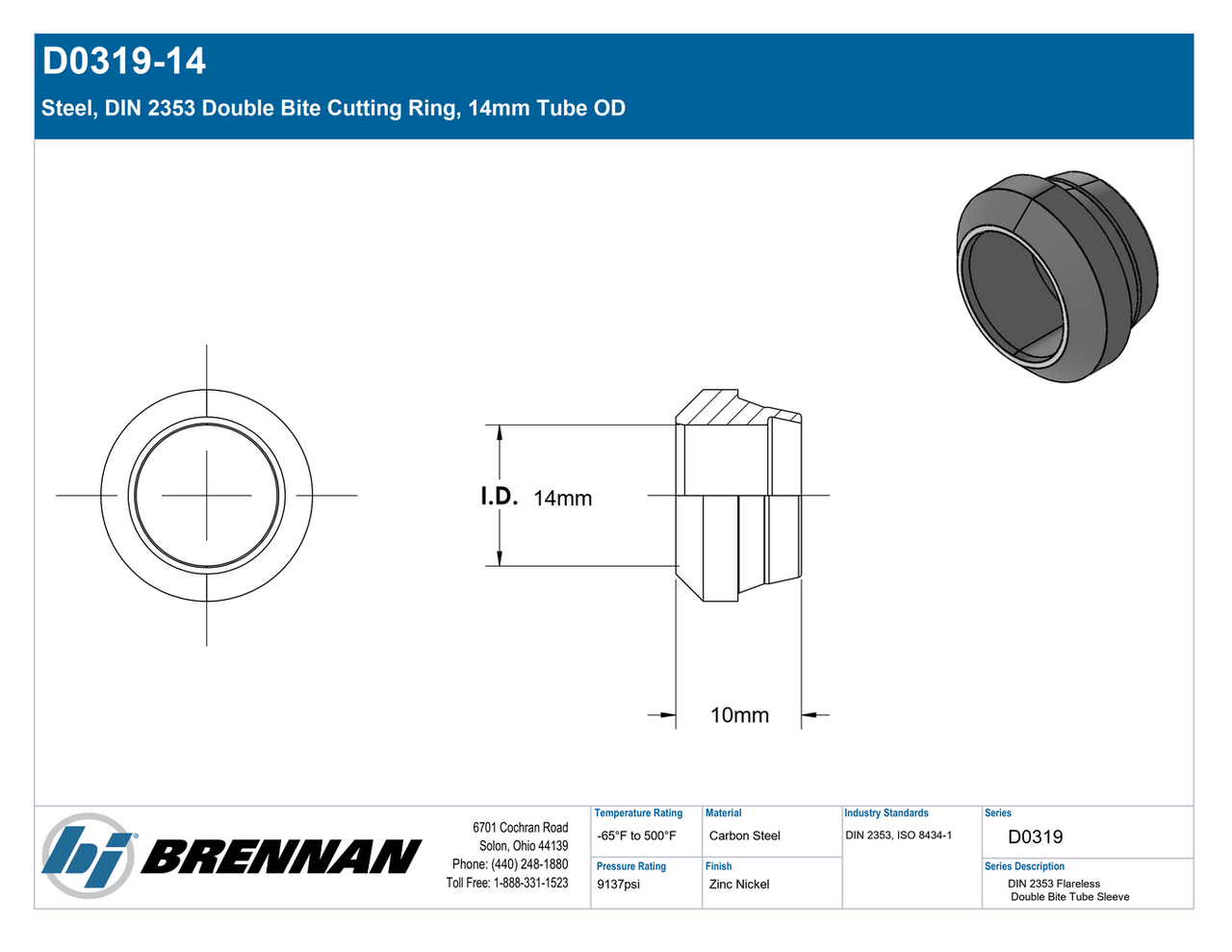

Steel, DIN 2353 Double Bite Cutting Ring, 14mm Tube OD
Specifications
| Connection Details | {"Connection Type":"DIN Tube Sleeve","Tube OD":"14mm","DIN Pressure Series":"Heavy","Standard":"DIN 2353","Connection Standard":"DIN 2353","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Sleeve","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Weight":"0.01 lb"} |
| Performance Specifications | {"Working Pressure":"9137 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"36548 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"PSR14X"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube Sleeve |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Sleeve |
| Side 1 Connection Type | DIN Tube Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
