Attributes
| Part Number | F2408-08-O |
|---|---|
| Is Series Page | 0 |
Description

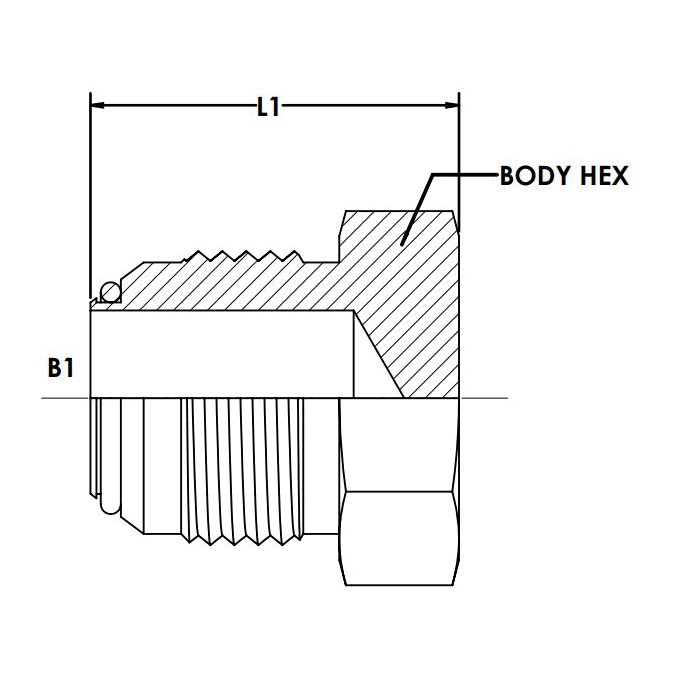

Steel, SAE J514 Flare O-Ring Plug, 1/2" Male Flare-O
Specifications
| Connection Details | {"Connection Type":"Male Flare-O","Tube OD":"1/2\"","Thread Type":"3/4-16 UNF","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection","Replacement Seal":"F4003-08"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"8 PNTXO-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Flare-O Plug |
| Technical Series Configuration | SAE J514 Male Flare O-Ring Tube Plug |
| Side 1 Connection Type | Male Flare-O |
| Shape | Cap/Plug |
| Product Type | Fittings |
