Attributes
| Part Number | 9346-12-12-12-SS |
|---|---|
| Is Series Page | 0 |
Description

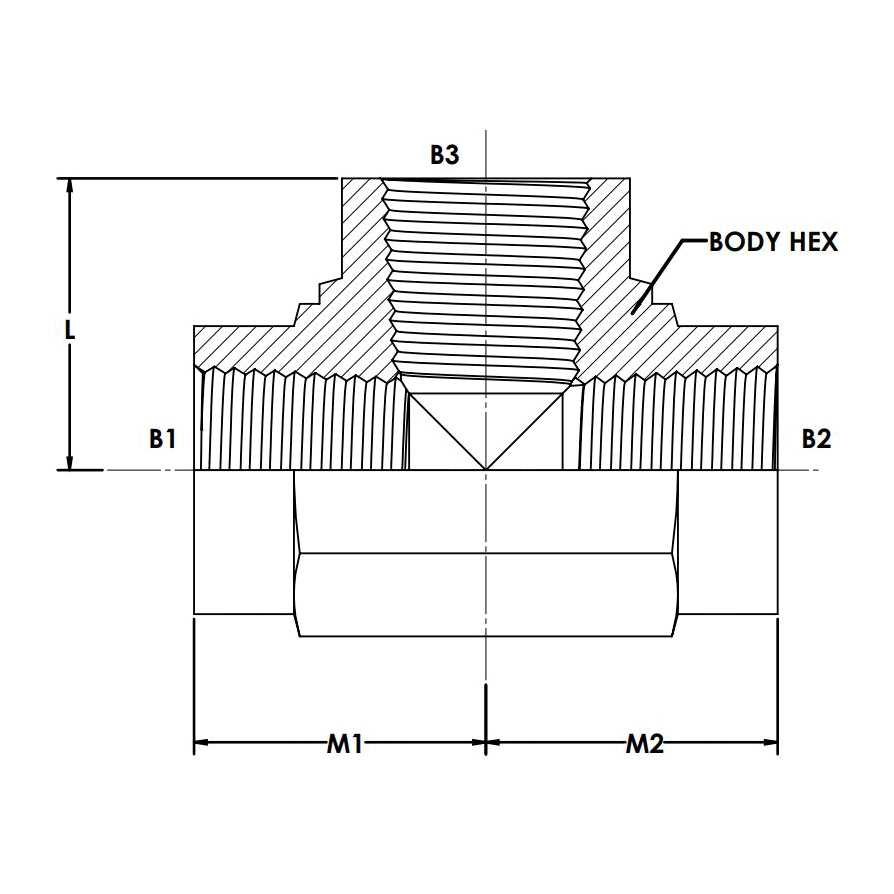

Stainless Steel, ISO 7-1 (Type R) Female BSPT Rigid Pipe Union Tee, 3/4" Female BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Female BSPT","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"R - 3/4-14","Side 1 Standard":"ISO 7-1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female BSPT","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"R - 3/4-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female BSPT","Side 3 Pipe Size":"3/4\"","Side 3 Thread Type":"R - 3/4-14","Side 3 Standard":"ISO 7-1","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.312","Weight":"0.78 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPT x Female BSPT x Female BSPT |
| Technical Series Configuration | ISO 7-1 Female BSPT Pipe x Female BSPT Pipe x Female BSPT Pipe Union Tee |
| Side 1 Connection Type | Female BSPT |
| Side 2 Connection Type | Female BSPT |
| Shape | Tee |
| Product Type | Fittings |
