Attributes
| Part Number | 2603-03-03-03-SS |
|---|---|
| Is Series Page | 0 |
Description

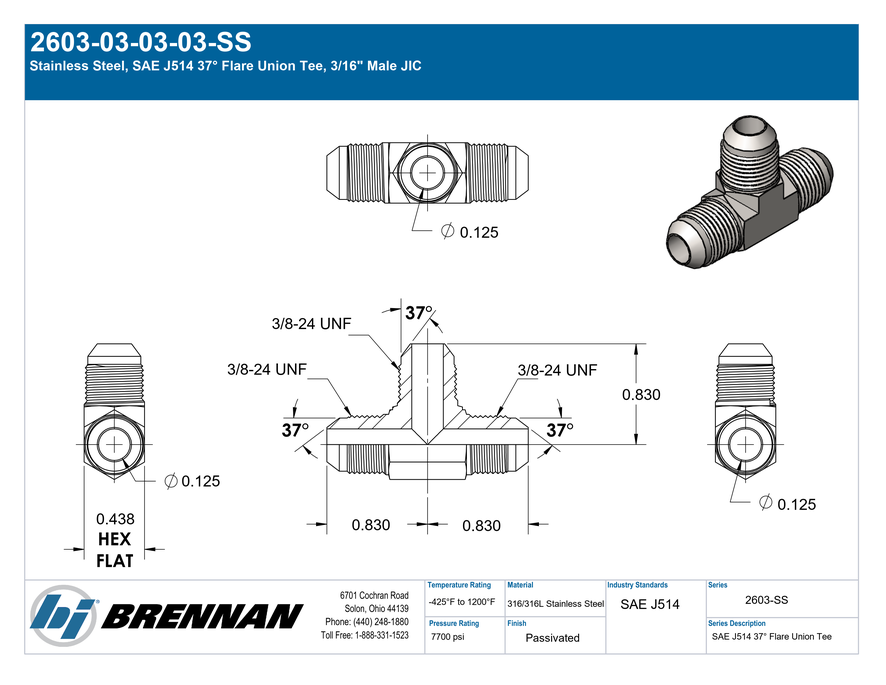

Stainless Steel, SAE J514 37° Flare Union Tee, 3/16" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"3/16\"","Side 1 Thread Type":"3/8-24 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/16\"","Side 2 Thread Type":"3/8-24 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"3/16\"","Side 3 Thread Type":"3/8-24 UNF","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Union Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"0.438","Weight":"0.07 lb"} |
| Performance Specifications | {"Working Pressure":"7700 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"30800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2033-3-3","Parker TFD Part Number":"3 JTX-SS","SAE J514 Part Number":"SAE J514 3-3-3 070401S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube Union Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
