Attributes
| Part Number | 7316-20-20-SS |
|---|---|
| Is Series Page | 0 |
Description

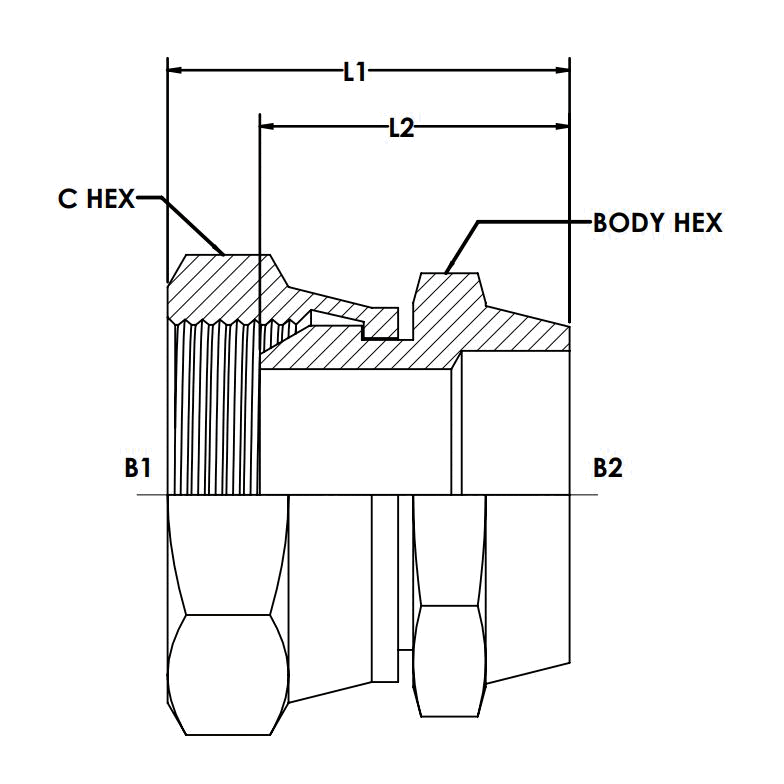

Stainless Steel, ISO 8434-6 Swivel Weld Connector, 1-1/4-11 Female BSPP Swivel x 1-1/4" Buttweld
Specifications
| Connection Details | {"Side 1 Connection Type":"Female BSPP Swivel","Side 1 Thread Type":"G - 1-1/4-11","Side 1 Standard":"ISO 8434-6","Side 1 Role":"Line Connection","Side 2 Connection Type":"Buttweld","Side 2 Standard":"BS EN 10253-2","Side 2 Role":"Weld Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Weight":"0.24 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female BSPP Swivel x Buttweld |
| Technical Series Configuration | ISO 8434-6 Female BSPP Swivel x BS EN 10253-2 Buttweld Connector |
| Side 1 Connection Type | Female BSPP Swivel |
| Side 2 Connection Type | Buttweld |
| Shape | Straight |
| Product Type | Fittings |
