Attributes
| Part Number | NS2405-02-02-B |
|---|---|
| Is Series Page | 0 |
Description

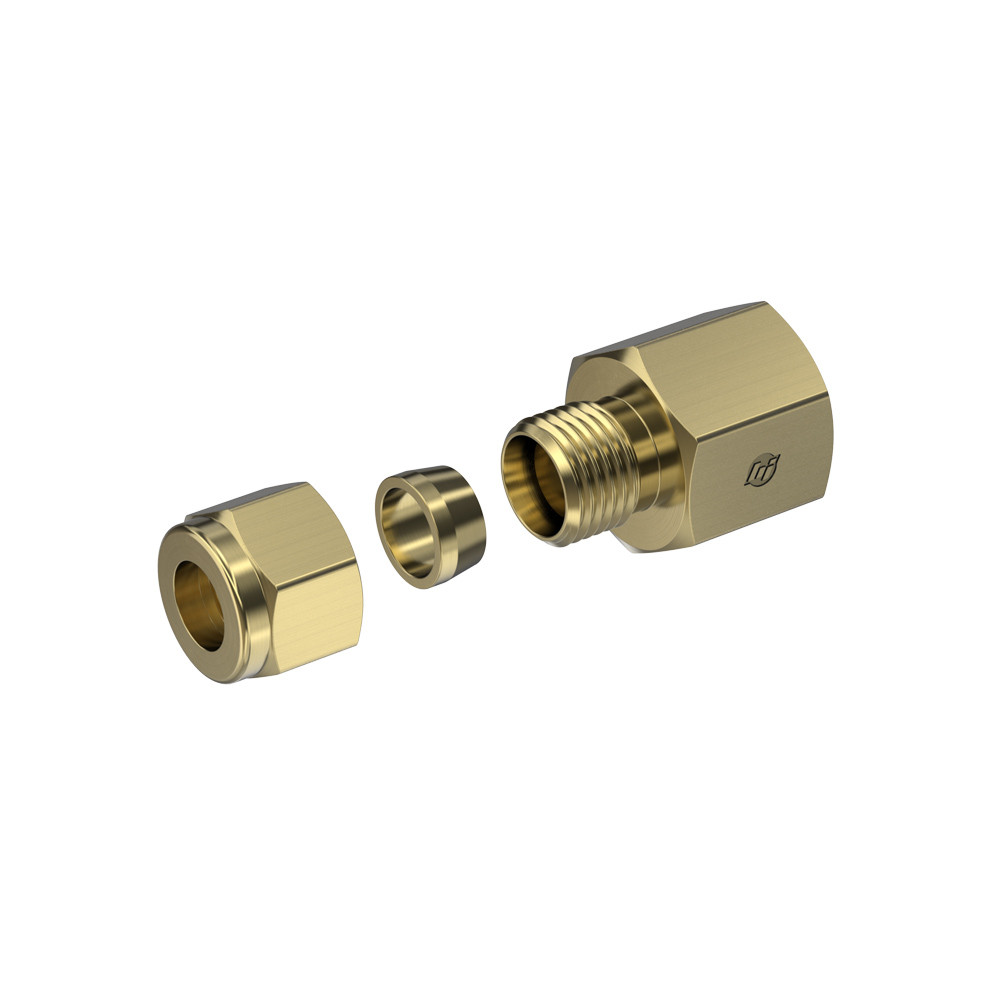

Brass, Brennan SF Tube Fitting Female Connector, 1/8" Tube OD x 1/8" Female NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Single Ferrule Compression","Side 1 Tube OD":"1/8\"","Side 1 Thread Type":"5/16-20 UN","Side 1 Role":"Tube Connection","Side 1 Tube Fitting System":"Brennan NS Series","Side 2 Connection Type":"Female NPT","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Brass","Material Grade":"ASTM B16 C36000","Length":"1.13\""} |
| Dimensions | {"Hex/Wrench":"0.5625\"","Overall Length/Centerline":"1.13\"","Weight":"0.1009 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Suggested Tubing":"High-quality, soft annealed seamless copper tubing manufactured to ASTM B75 or equivalent standards. Alternative: Soft annealed (Temper O) copper water tube, Type K or Type L, manufactured to ASTM B88. Condition: Tubing must be free of surface defects and scratches, suitable for reliable flaring and bending. Hardness: Soft annealed condition required to ensure proper bite and sealing in compression fittings. Tolerances: OD and wall thickness tolerances should conform to the applicable ASTM standard.","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Series Configuration | Single Ferrule Compression x Female NPT |
| Side 1 Connection Type | Single Ferrule Compression |
| Side 2 Connection Type | Female NPT |
| Product Type | Fittings |
