Attributes
| Part Number | 7006-08-12-SS |
|---|---|
| Is Series Page | 0 |
Description

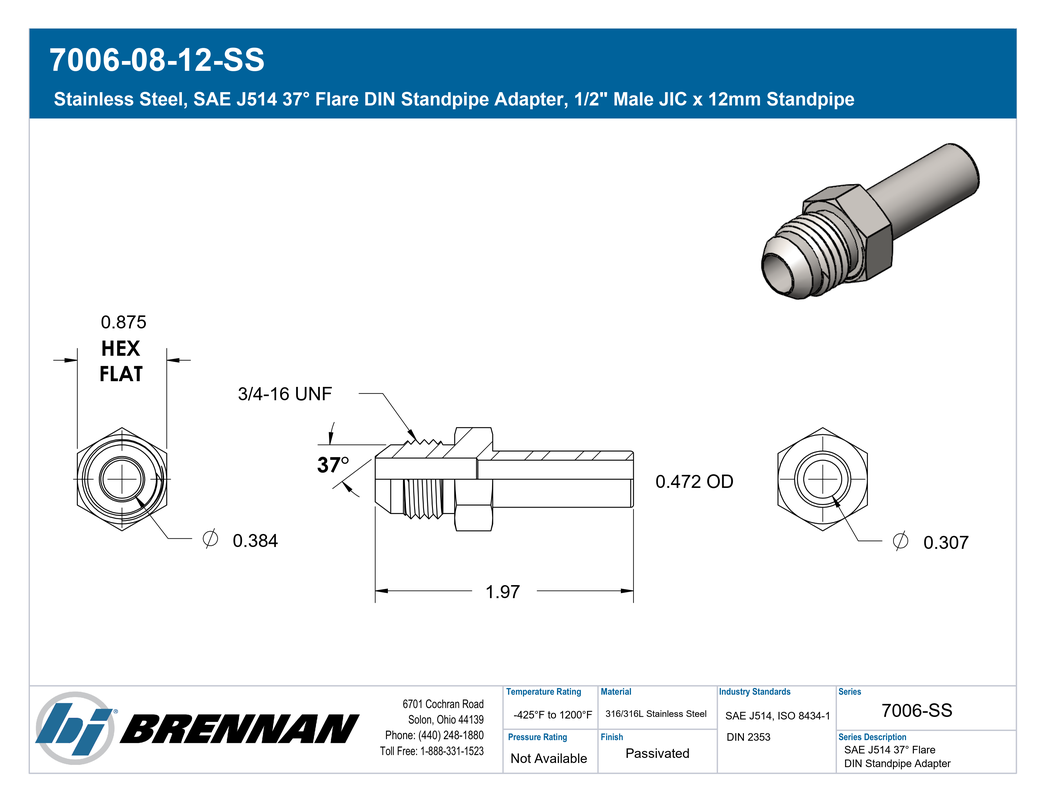

Stainless Steel, SAE J514 37° Flare DIN Standpipe Adapter, 1/2" Male JIC x 12mm Standpipe
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Standpipe","Side 2 Standard":"ISO 8434-1, DIN 2353","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.13 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x DIN Standpipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1/ DIN 2353 Metric Standpipe Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Standpipe |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
