Attributes
| Part Number | 104HSS1/4 |
|---|---|
| Is Series Page | 0 |
Description

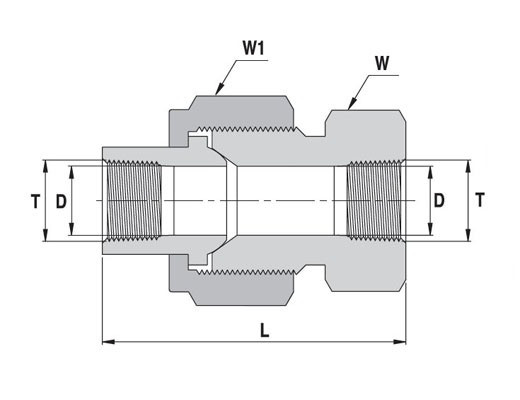

Stainless Steel 316 Pipe Fitting, Union record, Female NPT 1/4"
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPT","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Union Record","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"2.34\""} |
| Dimensions | {"Overall Length/Centerline":"2.34\"","Weight":"0.176 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001021","Swagelok Part Number":"SS-4-UBJ"} |
| Series Configuration | Female NPT x Female NPT Union Record |
| Side 1 Connection Type | Female NPT |
| Side 2 Connection Type | Female NPT |
| Product Type | Fittings |
