| Part Number | 2501-24-24-B |
|---|---|
| Is Series Page | 0 |
Description

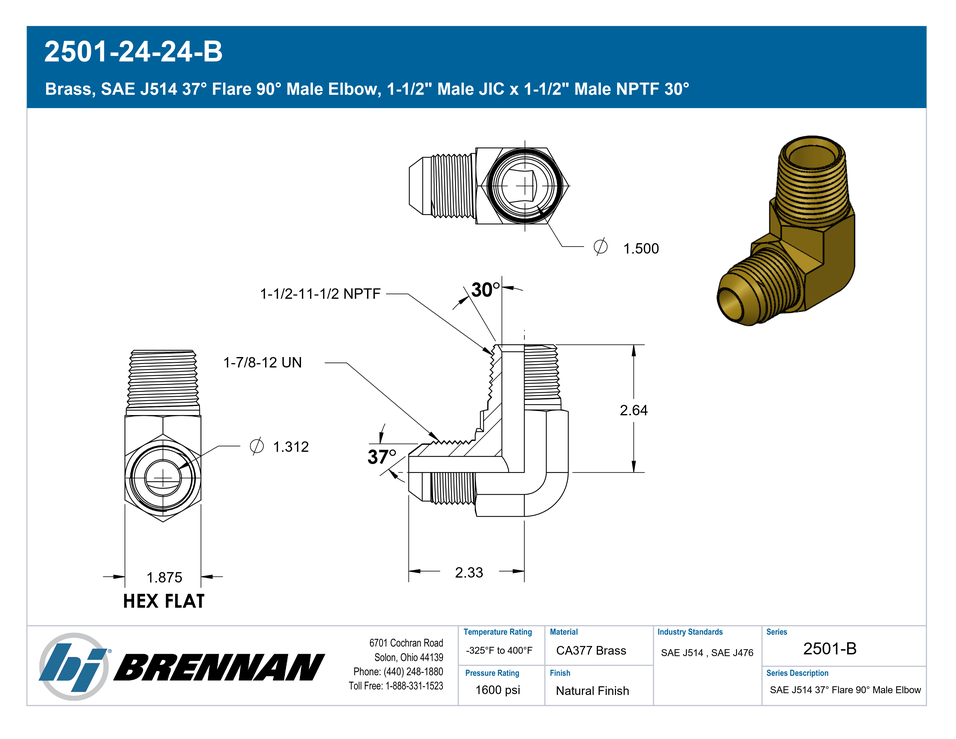

Brass, SAE J514 37° Flare 90° Male Elbow, 1-1/2" Male JIC x 1-1/2" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"1-1/2-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Hex/Wrench":"1.875","Weight":"1.84 lb"} |
| Performance Specifications | {"Working Pressure":"1600 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"6400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2024-24-24B","Parker Hose Part Number":"2103-24-24-B","Parker TFD Part Number":"24 CTX-B","SAE J514 Part Number":"SAE J514 24-24 070202B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
