Attributes
| Part Number | FS6410-04-04-O |
|---|---|
| Is Series Page | 0 |
Description

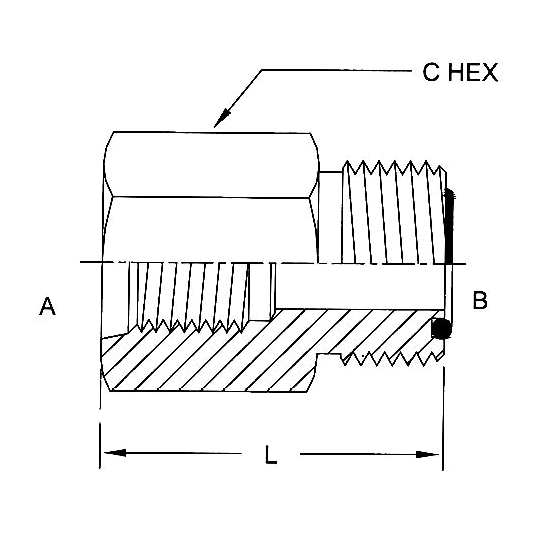

04FORB-04MFS Straight
Specifications
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
|---|---|
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"7000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"28000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female ORB x Male ORFS |
| Technical Series Configuration | SAE J1926-1 Female O-Ring Boss x SAE J1453 Male ORFS Tube Adapter |
| Shape | Straight |
| Product Type | Fittings |
