Attributes
| Part Number | 6410-10-08-O-SS |
|---|---|
| Is Series Page | 0 |
Description

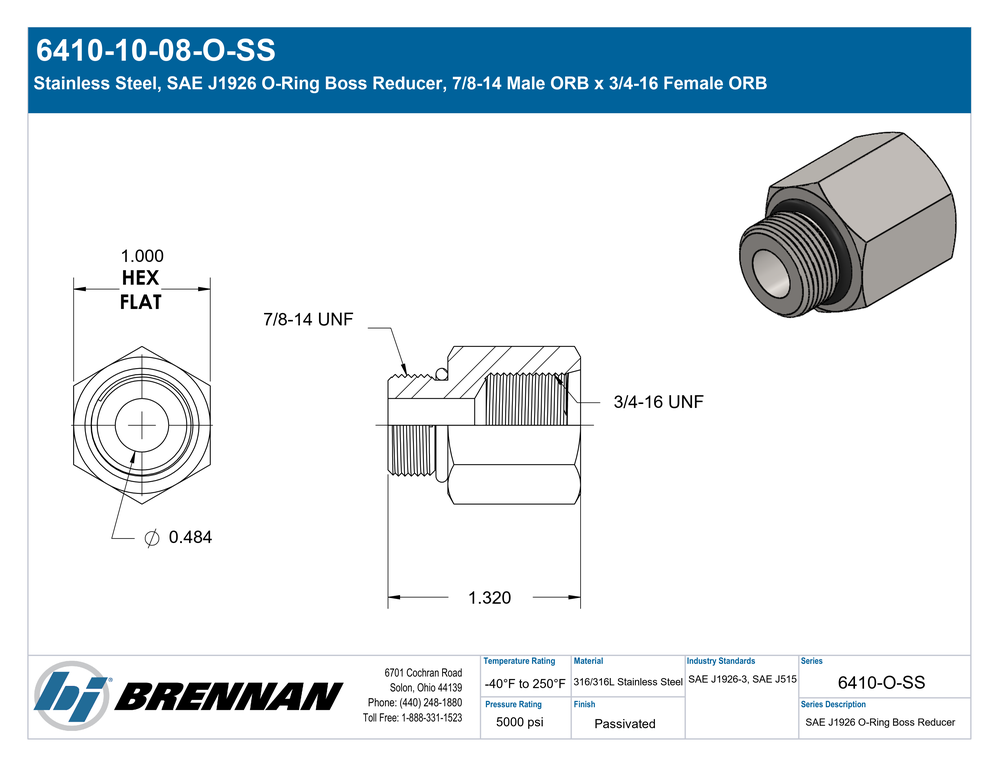

Stainless Steel, SAE J1926 O-Ring Boss Reducer, 7/8-14 Male ORB x 3/4-16 Female ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-10","Side 2 Connection Type":"Female ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF1010-1008","Parker TFD Part Number":"10-8 F5OG5-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORB x Female ORB |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x Female O-Ring Boss Reducer |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female ORB |
| Shape | Straight |
| Product Type | Fittings |
