Attributes
| Part Number | 120HNRSS3/4 |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel 316 Pipe fitting, Adapter, Female NPT 3/4" x Male ISO Tapered 3/4"
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPT","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"3/4-14 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"R - 3/4-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Adapter","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"2.02\""} |

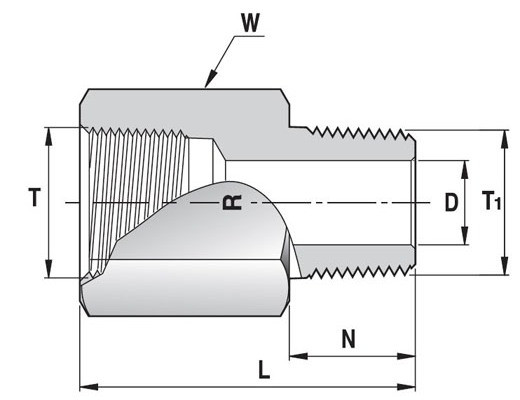

| Dimensions | {"Hex/Wrench":"1.3125\"","Overall Length/Centerline":"2.02\"","Weight":"0.459 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001193","Swagelok Part Number":"SS-12-A-12RT"} |
| Series Configuration | Female NPT x Male BSPT |
| Side 1 Connection Type | Female NPT |
| Side 2 Connection Type | Male BSPT |
| Product Type | Fittings |
