Attributes
| Part Number | 2403-16-10 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Union, 1" Male JIC x 5/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"5/8\"","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Union","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.375","Weight":"0.38 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2027-16-10S","Parker Hose Part Number":"0303-10-16","Parker TFD Part Number":"16-10 HTX-S","SAE J514 Part Number":"SAE J514 16-10 070101C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

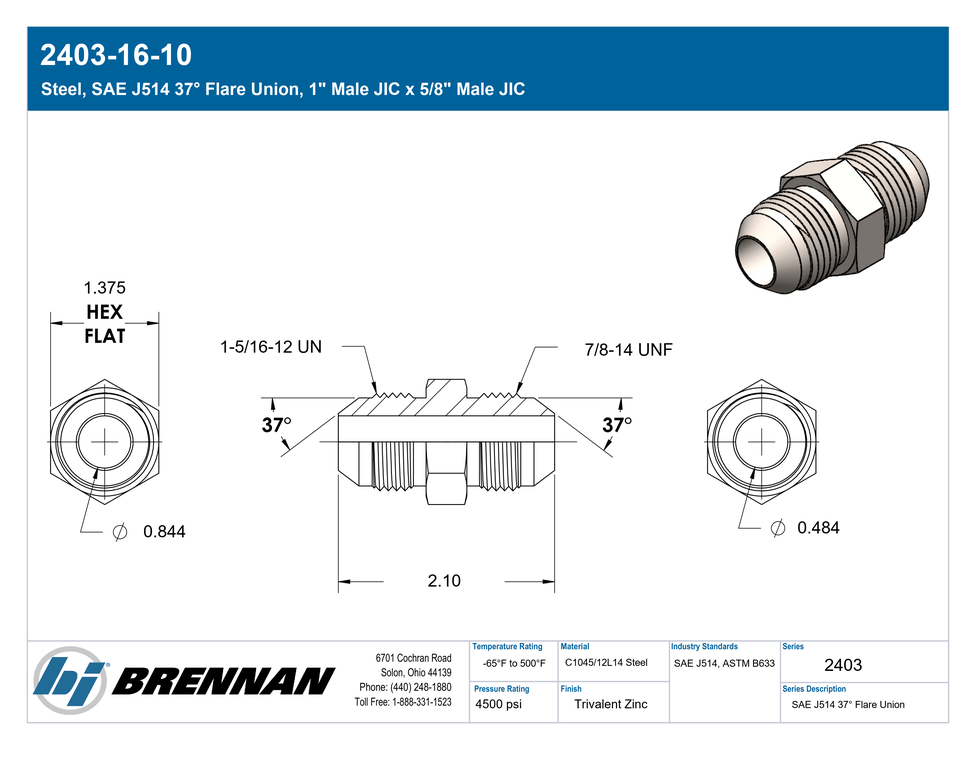

Specification Sheet
