Attributes
| Part Number | 100HMSS3/8 |
|---|---|
| Is Series Page | 0 |
Description

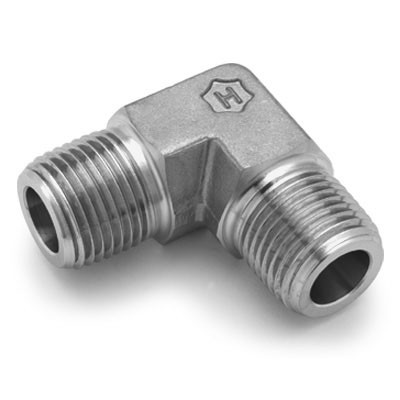

Stainless Steel 316 Pipe Fitting, Male Elbow, NPT 3/8"
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPT","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"1.17\""} |
| Dimensions | {"Hex/Wrench":"0.8125\"","Overall Length/Centerline":"1.17\"","Weight":"0.245 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3000970","Parker IPD ALOK Part Number":"6-6 ME-SS","Swagelok Part Number":"SS-6-ME"} |
| Series Configuration | Male NPT x Male NPT |
| Side 1 Connection Type | Male NPT |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
