121HB3/4

Scraped SKU: 121hb3-4 Price: 30.30 USD 2026-06-05 05:42:20

Attributes

Part Number121HB3/4
Is Series Page0

Description

Brass Pipe Plug, Male NPT 3/4"

Specifications

Connection Details{"Connection Type":"NPT Plug","Pipe Size":"3/4\"","Thread Type":"3/4-14 NPT","Role":"Pipe Connection","Connection Role":"Pipe Connection"}
Body & Materials{"Shape":"Plug","Primary Material":"Brass","Length":"1.21\""}

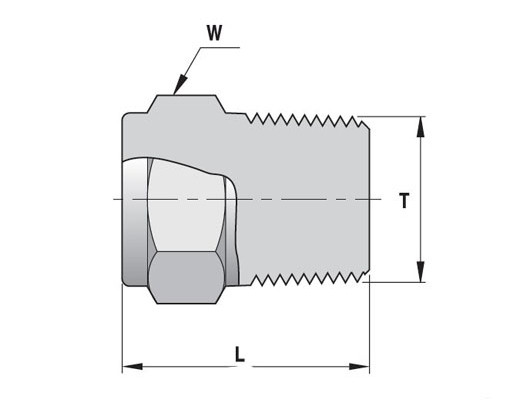

Dimensions{"Hex/Wrench":"1.0625\"","Overall Length/Centerline":"1.21\"","Weight":"0.324 lb"}
Performance Specifications{"Temperature Range":"-325°F to 400°F"}
Cross References{"Gal #":"3101048","Swagelok Part Number":"B-12-P"}
Series ConfigurationNPT Plug
Side 1 Connection TypeNPT Plug
Product TypeFittings

PDF Documents
