Attributes
| Part Number | 2406-05-04-SS |
|---|---|
| Is Series Page | 0 |
Description

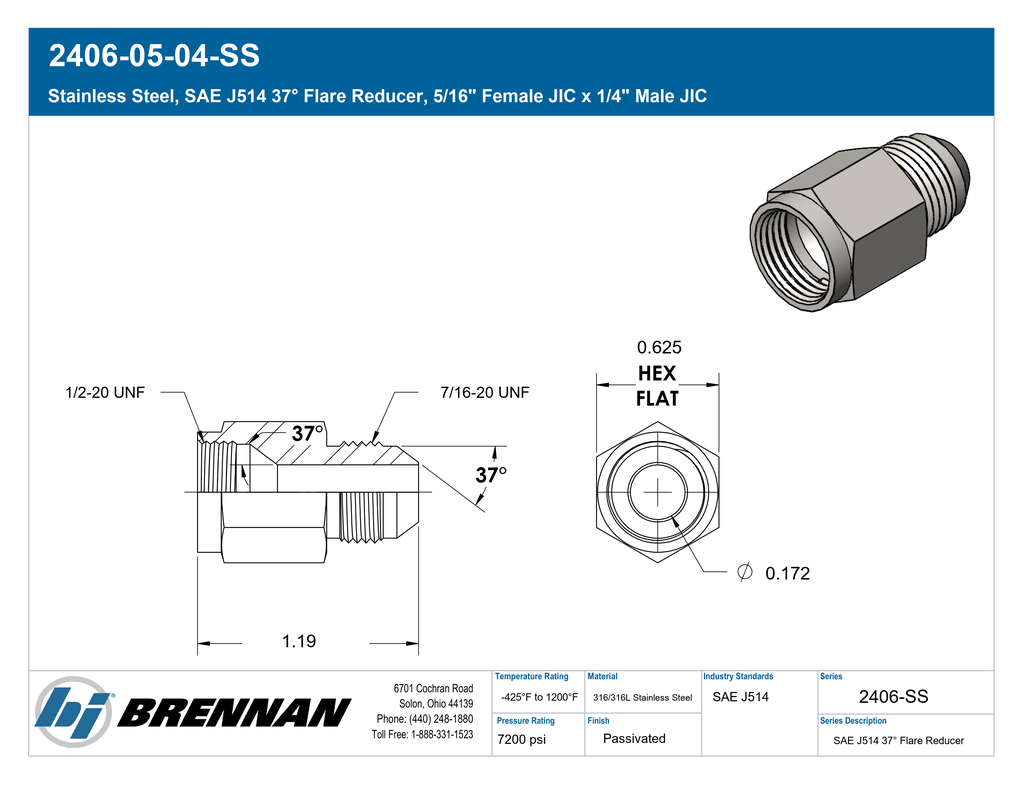

Stainless Steel, SAE J514 37° Flare Reducer, 5/16" Female JIC x 1/4" Male JIC
Specifications
| Series Configuration | Female JIC x Male JIC |
|---|---|
| Technical Series Configuration | SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer |
| Side 1 Connection Type | Female JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
