Attributes
| Part Number | 7202-04-04-NWO-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Male BSPP Adjustable (Type H) Port 90° Elbow, 1/4" Male JIC x 1/4-19 Male BSPP Adjustable ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP Adjustable ORR","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-04","Side 2 Replacement Washer":"9200-04-SS"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.551","Weight":"0.12 lb"} |
| Performance Specifications | {"Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal"} |
| Cross References | {"Aeroquip Part Number":"259-GG306-NP04-04","Parker TFD Part Number":"4-4C4OMXSS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP Adjustable ORR |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 (Type H) Male BSPP Adjustable ORR Port 90° Elbow |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP Adjustable ORR |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

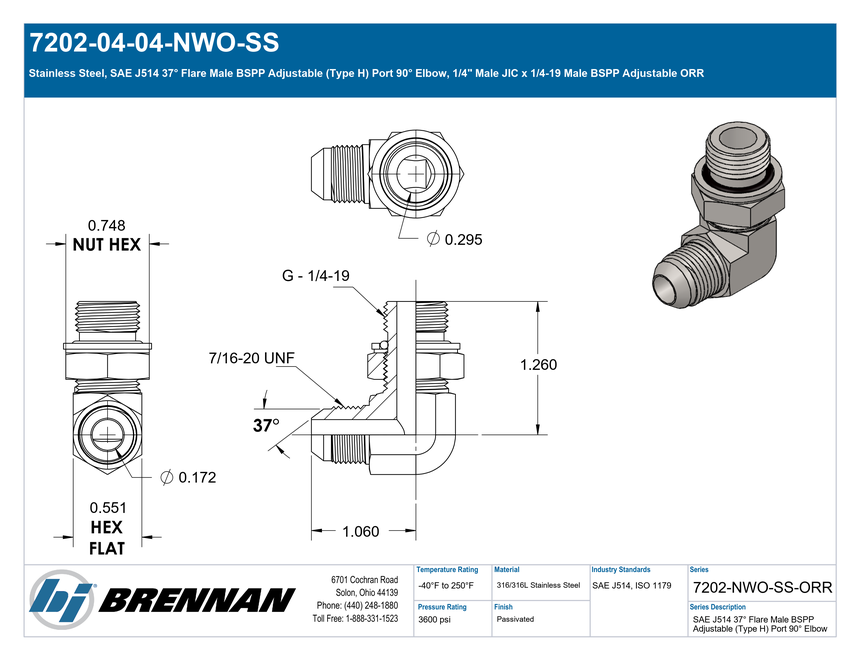

Specification Sheet
