Attributes
| Part Number | NS0318-04-B |
|---|---|
| Is Series Page | 0 |
Description

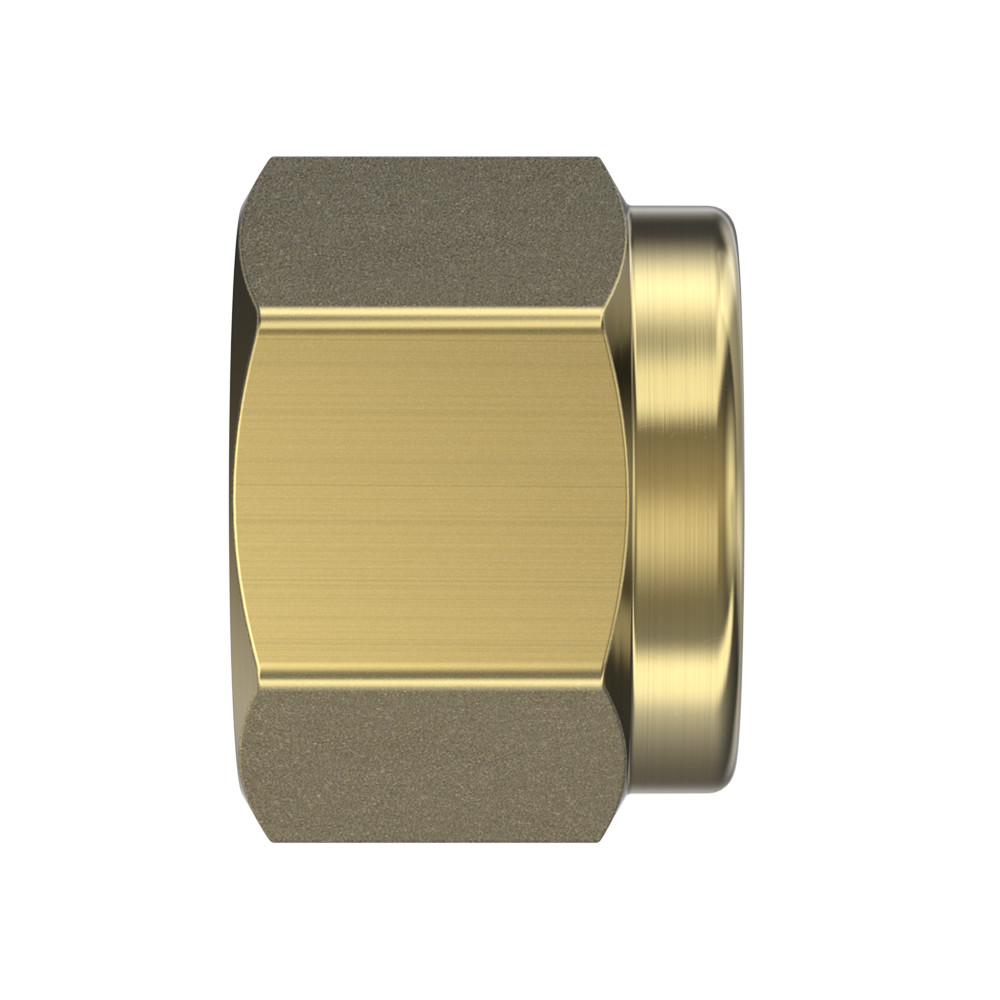

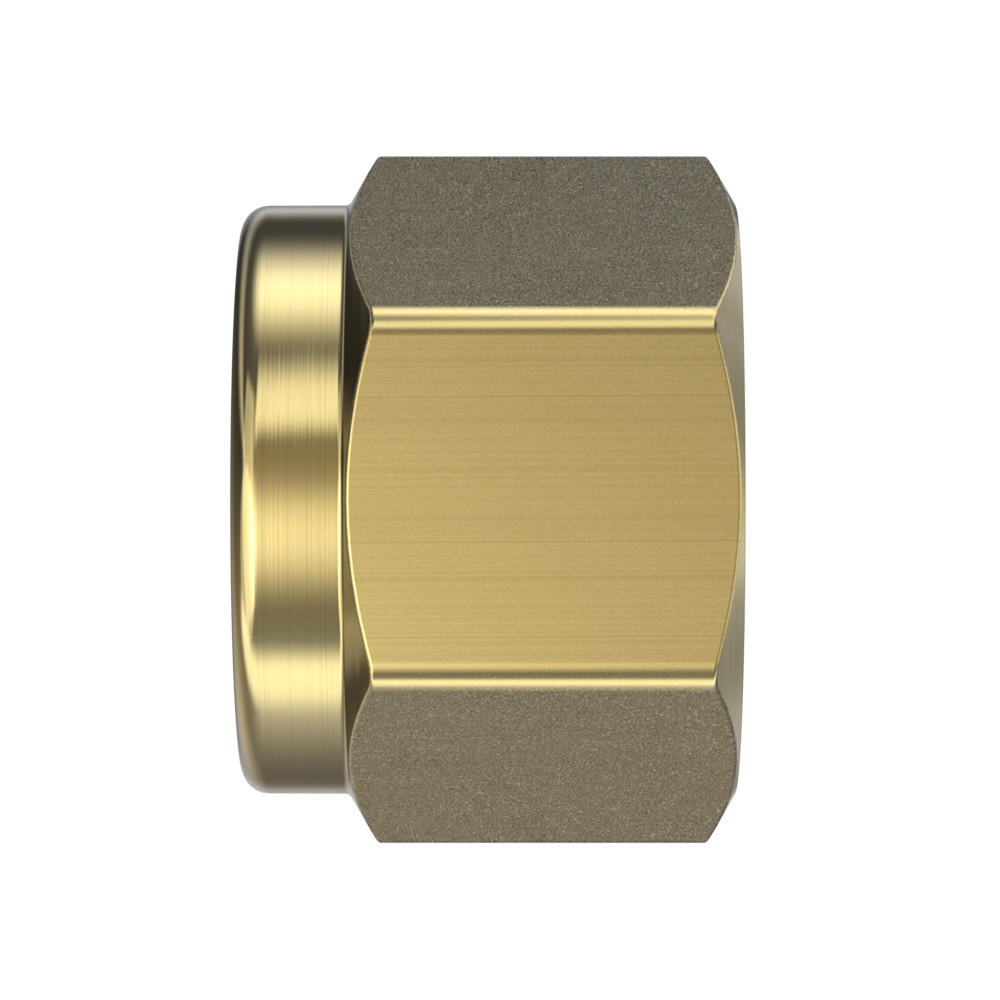

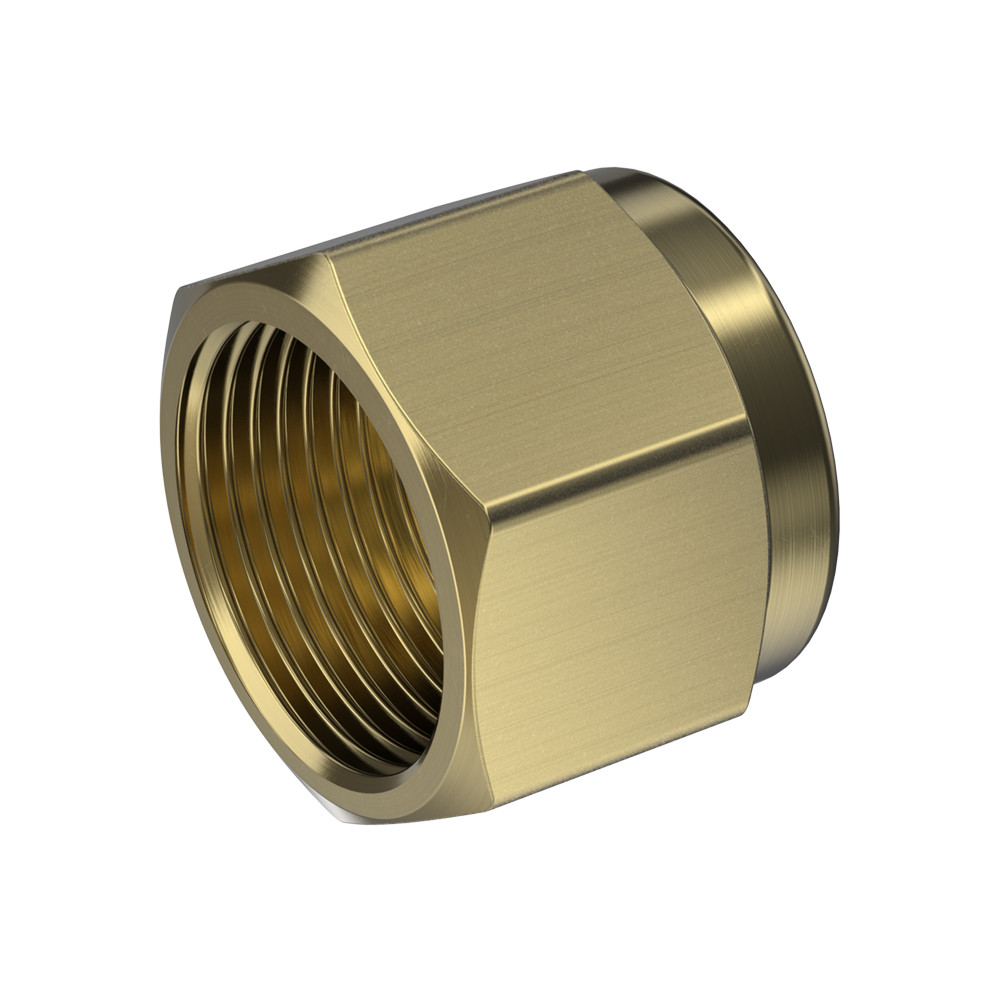

04 IN NUT Brass
Specifications
| Connection Details | {"Connection Type":"Single Ferrule Compression Tube Nut","Tube OD":"1/4\"","Thread Type":"7/16-20 UNF","Standard":"ASME B31.3","Connection Standard":"ASME B31.3","Tube Fitting System":"Brennan NS Series"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Primary Material":"Brass","Material Grade":"ASTM B16 C36000","Length":"0.5\""} |
| Dimensions | {"Hex/Wrench":"0.5625\"","Overall Length/Centerline":"0.5\"","Weight":"0.0336 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Series Configuration | Single Ferrule Compression Tube Nut |
| Side 1 Connection Type | Single Ferrule Compression Tube Nut |
| Product Type | Fittings |
