Attributes
| Part Number | 116HB3/8X1/4 |
|---|---|
| Is Series Page | 0 |
Description

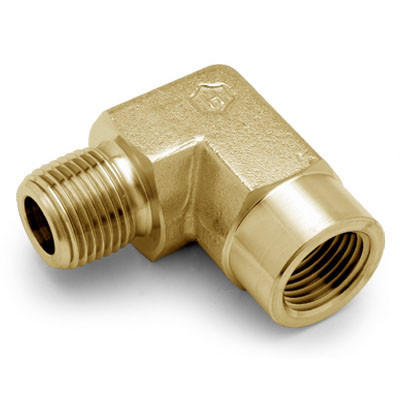

Brass Pipe Fitting, Street Elbow, Female NPT 3/8" x Male NPT 1/4"
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPT","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Street Elbow","Primary Material":"Brass","Length":"1.42\""} |
| Dimensions | {"Hex/Wrench":"0.9375\"","Overall Length/Centerline":"1.42\"","Weight":"0.348 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Gal #":"3100972","Swagelok Part Number":"B-6-RSE-4"} |
| Series Configuration | Female NPT x Male NPT |
| Side 1 Connection Type | Female NPT |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
