Attributes
| Part Number | 122HNGSS1/8 |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel 316 Pipe Fitting, Hex Nipple, Male NPT 1/8" x Male ISO Parallel 1/8"
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPT","Side 1 Pipe Size":"1/8\"","Side 1 Thread Type":"1/8-27 NPT","Side 1 Standard":"ASME/ANSI B1.20.1","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male BSPP","Side 2 Thread Type":"G - 1/8-28","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Hex Nipple","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"1.07\""} |

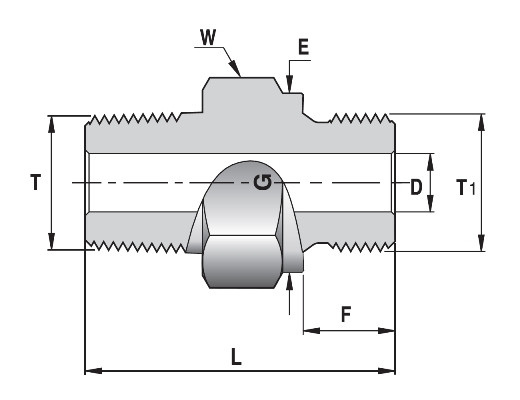

| Dimensions | {"Hex/Wrench":"0.5625\"","Overall Length/Centerline":"1.07\"","Weight":"0.05 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001245","Parker IPD ALOK Part Number":"2-2R MHN-SS","Swagelok Part Number":"SS-2-HN-2RS"} |
| Series Configuration | Male NPT x Male BSPP |
| Side 1 Connection Type | Male NPT |
| Side 2 Connection Type | Male BSPP |
| Product Type | Fittings |
