Attributes
| Part Number | 774HLB3/8 |
|---|---|
| Is Series Page | 0 |
Description

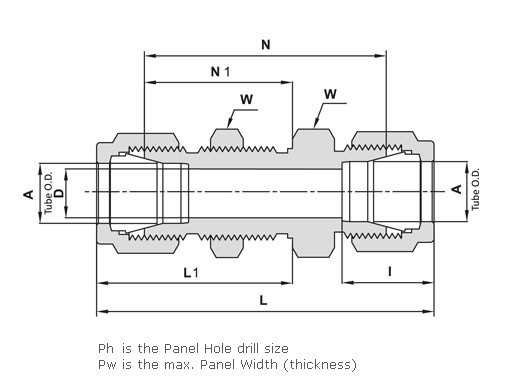

Brass, One-Lok Tube Fitting Bulkhead Union, 3/8" Tube OD
Specifications
| Connection Details | {"Side 1 Connection Type":"Single Ferrule Compression","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-20 UN","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"760HLB3/8","Side 1 Replacement Nut":"761LB3/8","Side 1 Tube Fitting System":"Ham-let One-Lok Series","Side 2 Connection Type":"Single Ferrule Compression","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-20 UN","Side 2 Role":"Tube Connection","Side 2 Replacement Ferrule":"760HLB3/8","Side 2 Replacement Nut":"761LB3/8","Side 2 Tube Fitting System":"Ham-let One-Lok Series"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Bulkhead Union","Primary Material":"Brass","Length":"2.45\""} |
| Dimensions | {"Hex/Wrench":"0.75\"","Overall Length/Centerline":"2.45\"","Weight":"0.176 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Gal #":"3100560"} |
| Series Configuration | Single Ferrule Compression Bulkhead x Single Ferrule Compression |
| Side 1 Connection Type | Single Ferrule Compression |
| Side 2 Connection Type | Single Ferrule Compression |
| Product Type | Fittings |
