Attributes
| Part Number | 107HSS1/2 |
|---|---|
| Is Series Page | 0 |
Description

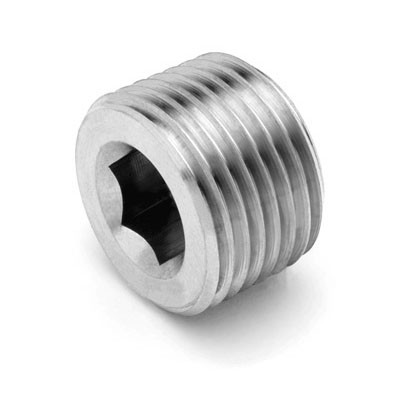

Stainless Steel 316 Hollow Hex Head Plug, Male NPT 1/2"
Specifications
| Connection Details | {"Connection Type":"Hollow Hex Head NPT Plug","Pipe Size":"1/2\"","Thread Type":"1/2-14 NPT","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Primary Material":"Stainless Steel","Material Grade":"316L","Surface Treatment":"Passivated","Length":"0.61\""} |
| Dimensions | {"Hex/Wrench":"0.375\"","Overall Length/Centerline":"0.61\"","Weight":"0.066 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Gal #":"3001032","Swagelok Part Number":"SS-8-HP"} |
| Series Configuration | Hollow Hex Head NPT Plug |
| Side 1 Connection Type | Hollow Hex Head NPT Plug |
| Product Type | Fittings |
