Attributes
| Part Number | N2706-LN-06-06-B |
|---|---|
| Is Series Page | 0 |
Description

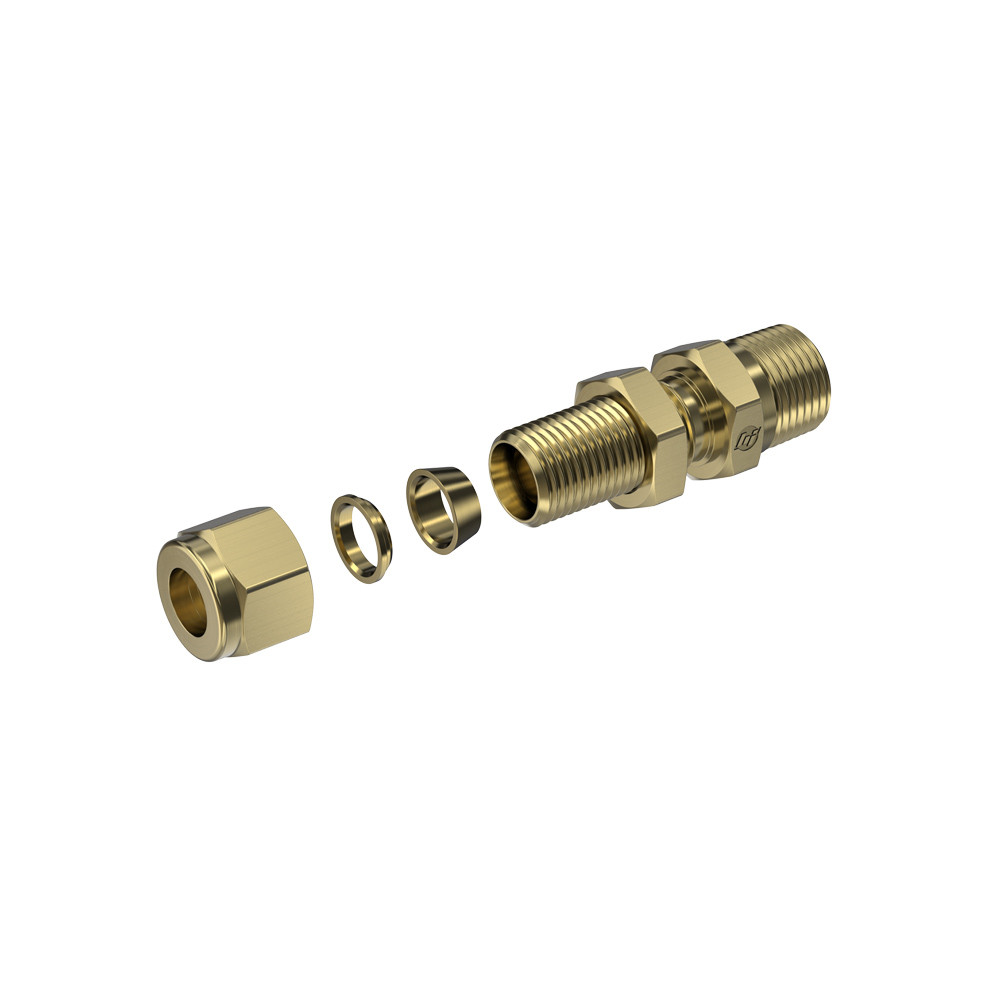

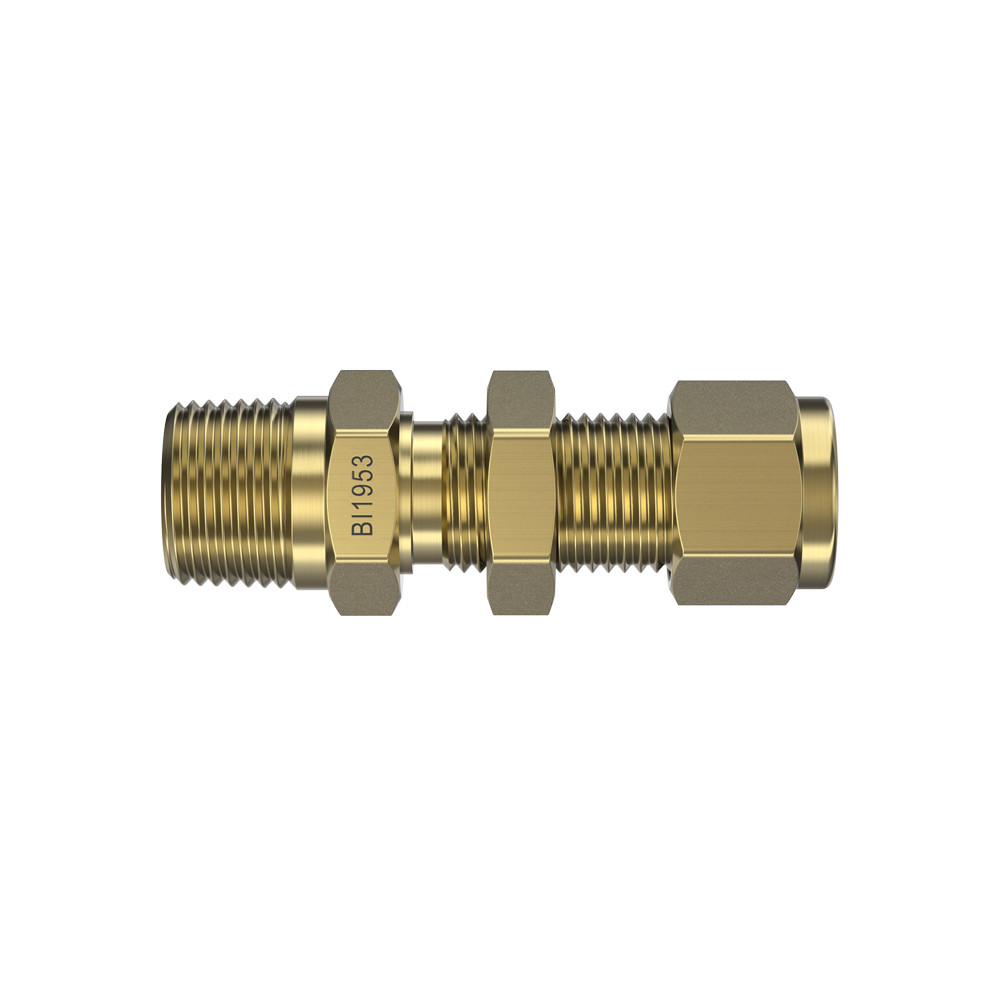

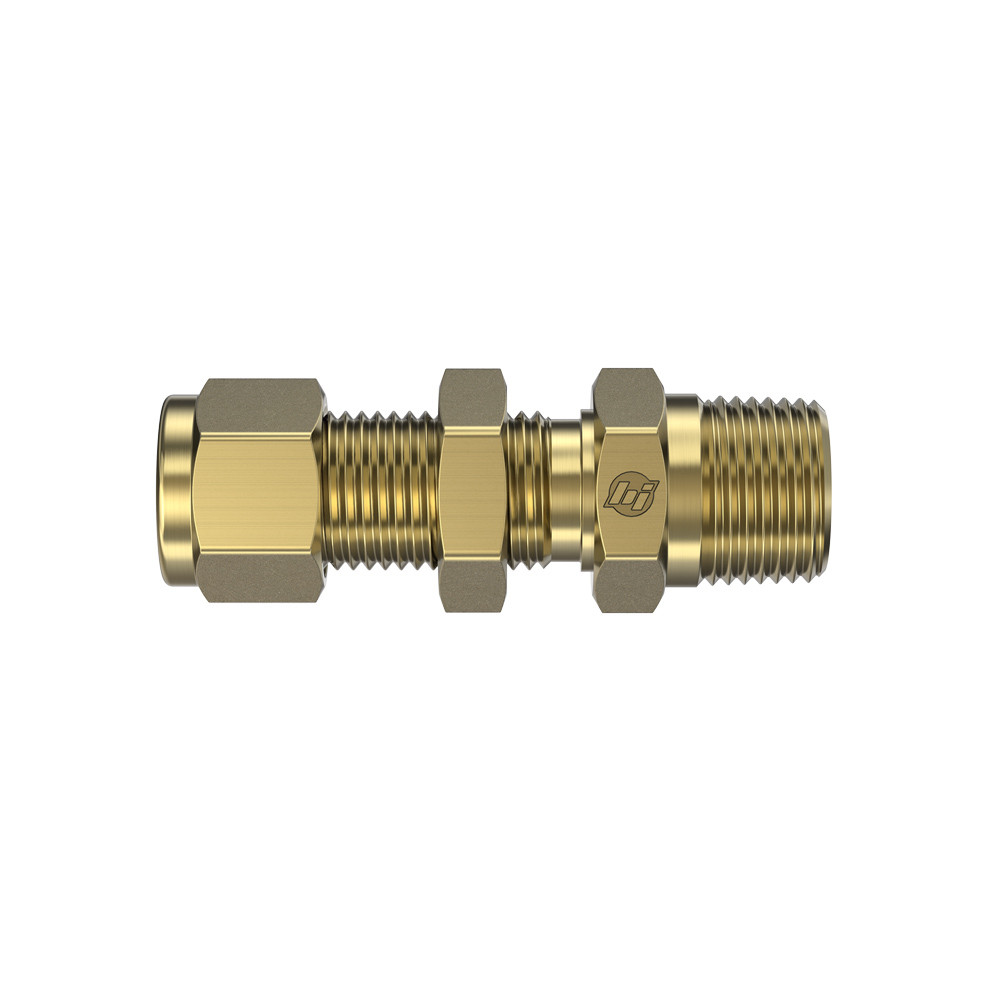

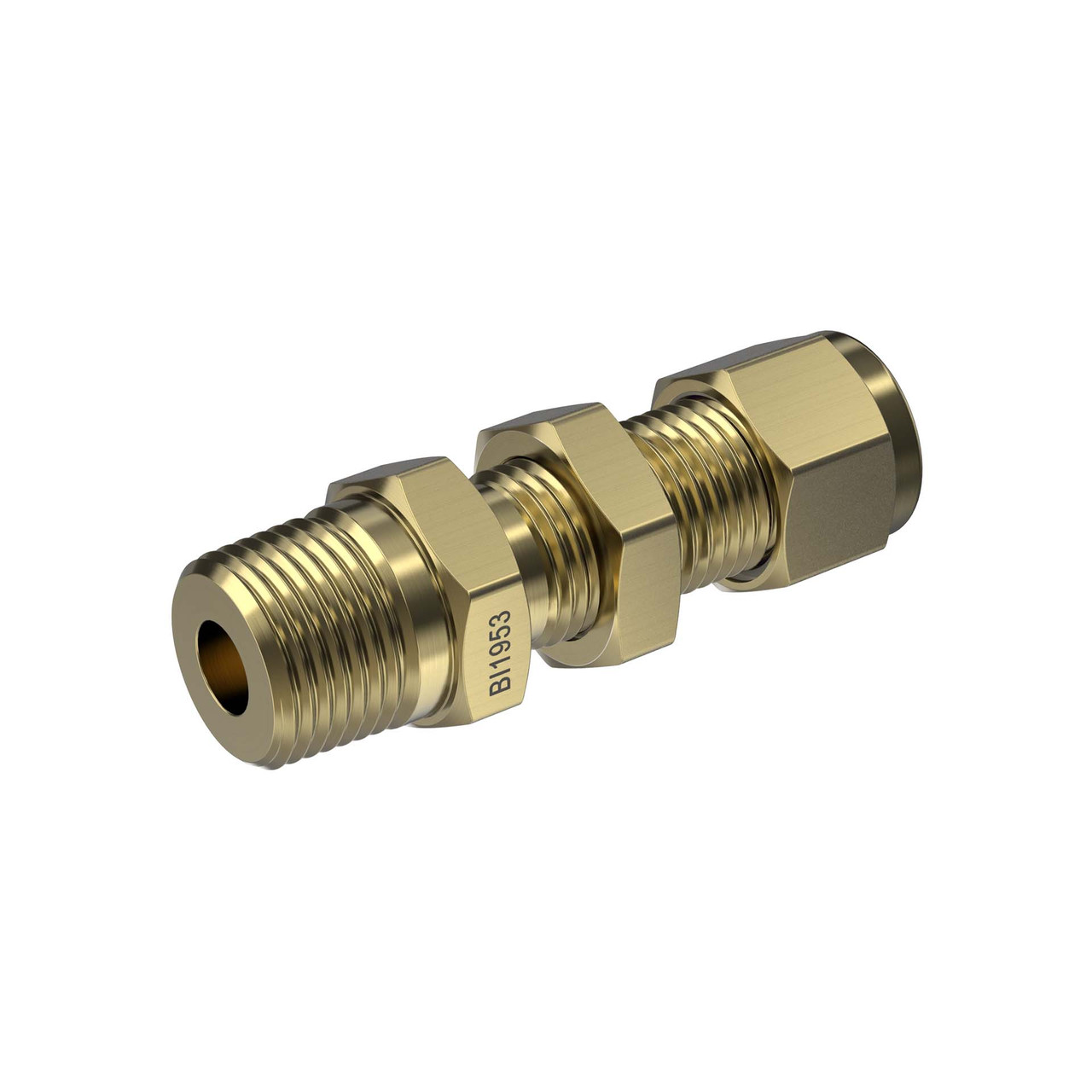

Brass, Brennan Tube Fitting Bulkhead Male Connector, 3/8" Tube OD x 3/8" Male NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Double Ferrule Compression","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"9/16-20 UN","Side 1 Role":"Tube Connection","Side 1 Replacement Ferrule":"N0319-F-06-B | N0319-B-06-B","Side 1 Replacement Nut":"N0318-06-B","Side 1 Tube Fitting System":"Brennan N Series","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPT","Side 2 Standard":"ASME/ANSI B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Bulkhead Male Connector","Primary Material":"Brass","Material Grade":"ASTM B16 C36000","Length":"2.26\""} |
| Dimensions | {"Hex/Wrench":"0.75\"","Overall Length/Centerline":"2.26\"","Weight":"0.2287 lb"} |
| Performance Specifications | {"Working Pressure":"1100 psi","Temperature Range":"-325°F to 400°F","Pressure Rating Notes":"See Tube Pressure Rating Chart"} |
| Cross References | {"Parker IPD ALOK Part Number":"6MBC6N-B"} |
| Series Configuration | Double Ferrule Compression Bulkhead x Male NPT |
| Side 1 Connection Type | Double Ferrule Compression |
| Side 2 Connection Type | Male NPT |
| Product Type | Fittings |
